Description

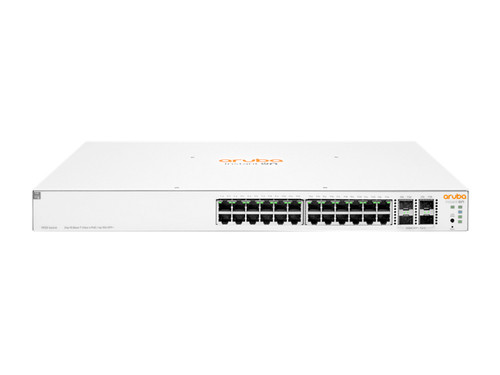

DifferentiatorAdvanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports. Provides 195 W Class 4 PoE power.
Additional Information
- Built-in processor:
- Yes
- Switching capacity:
- 128 Gbit/s
- Throughput:
- 95.23 Mpps
- MAC address table:
- 16000 entries
- Product colour:
- White
- Rack mounting:
- Yes
- Stackable:
- Yes
- Internal memory:
- 512 MB
- Form factor:
- 1U
- Memory type:
- SDRAM / Flash
- VLAN support:
- Yes
- Switch type:
- Managed
- Web-based management:
- Yes
- Cloud-managed:
- Yes
- System event log:
- Yes
- ARP inspection:
- Yes
- Multicast support:
- Yes
- Ethernet LAN data rates:
- 10,100,1000 Mbit/s
- Quality of Service (QoS) support:
- Yes
- Copper ethernet cabling technology:
- 1000BASE-T
- 10G support:
- No
- Port mirroring:
- Yes
- Full duplex:
- Yes
- Flow control support:
- Yes
- Link aggregation:
- Yes
- Spanning tree protocol:
- Yes
- Auto-sensing:
- Yes
- IP routing:
- Yes
- Routing entries:
- 32.0
- Rate limiting:
- Yes
- Active link detection:
- Yes
- Number of VLANs:
- 4093.0
- Flash memory:
- 256 MB
- SFP+ module slots quantity:
- 4.0
- Basic switching RJ-45 Ethernet ports quantity:
- 24.0
- Basic switching RJ-45 Ethernet ports type:
- Gigabit Ethernet (10/100/1000)
- AC input voltage:
- 100 - 240 V
- AC input frequency:
- 50 - 60 Hz
- Power over Ethernet (PoE):
- No
- Input current:
- 0.2 A
- Power consumption (max):
- 234 W
- Power supply included:
- Yes
- Power source:
- AC
- Processor model:
- ARM Cortex-A9
- Processor frequency:
- 800 MHz
- DHCP features:
- DHCP client, DHCP snooping
- IGMP snooping:
- Yes
- SSH/SSL support:
- Yes
- Access Control List (ACL):
- Yes
- Loop protection:
- Yes
- BPDU filtering/protection:
- Yes
- Width:
- 442.5 mm
- Height:
- 43.9 mm
- Weight:
- 3.5 kg
- Depth:
- 265 mm
