Description

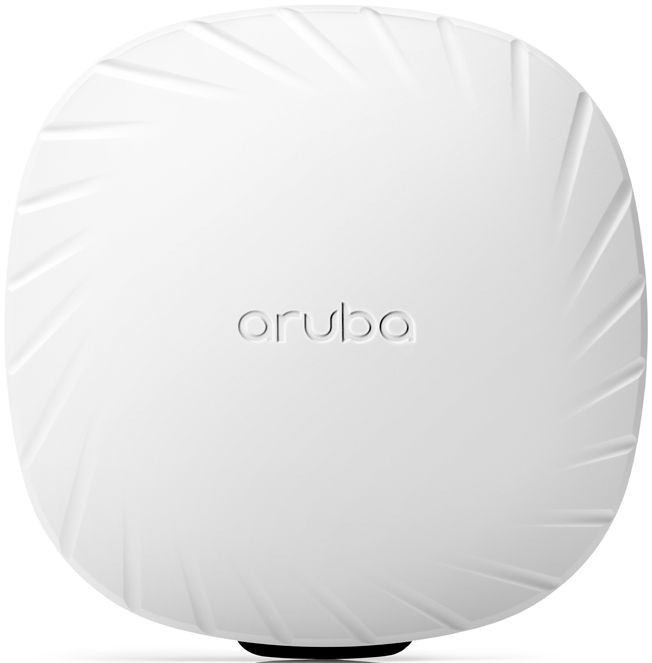

The Aruba 503 Series Access Points (APs) provide costeffective, high-performance connectivity for any organization experiencing device growth due to increased mobility, the shift to cloud, or IoT. With a maximum real-world aggregate data rate of 1.49 Gbps (HE80/HE20), the 503 Series deliver the speed and reliability needed for medium-density
venues and workplaces such as schools, midsize offices, and retailers. Each 503 Series AP provides connectivity for a maximum of 256 associated clients per radio (512 in total).
venues and workplaces such as schools, midsize offices, and retailers. Each 503 Series AP provides connectivity for a maximum of 256 associated clients per radio (512 in total).
Additional Information
- Antenna direction type:
- Omni-directional
- Compliance certificates:
- Low Voltage Directive (LVD)
- Product colour:
- White
- Reset button:
- Yes
- LED indicators:
- Reset, Status, System
- Trusted Platform Module (TPM):
- Yes
- 2.4 GHz:
- Yes
- 5 GHz:
- Yes
- 6 GHz:
- No
- Antenna type:
- Internal
- Networking standards:
- IEEE 802.11ax
- Cabling technology:
- 10/100/1000Base-T(X)
- MIMO:
- Yes
- Operating temperature (T-T):
- 0 - 40 °C
- Storage temperature (T-T):
- -25 - 55 °C
- Operating relative humidity (H-H):
- 5 - 95%
- Storage relative humidity (H-H):
- 10 - 100%
- Package width:
- 196 mm
- Package depth:
- 183 mm
- Package height:
- 67 mm
- Package weight:
- 515 g
- Maximum data transfer rate:
- 1490 Mbit/s
- Ethernet LAN (RJ-45) ports:
- 1.0
- USB 2.0 ports quantity:
- 1.0
- USB connector type:
- USB Type-A
- Power over Ethernet (PoE):
- Yes
- Security algorithms:
- WPA3, WPA, WPA2
- Width:
- 145 mm
- Height:
- 145 mm
- Weight:
- 255 g
- Depth:
- 35 mm
