Overview
HPE Aruba Networking 500 Series Campus Access Points deliver cost-effective Wi-Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With a 1.49 Gbps maximum combined data rate, the 500 series delivers reliable Wi-Fi for medium-density environments and is supported by HPE Aruba Networking Central, AI-powered management that simplifies and improves IT operations across branch, remote office, campus, data center, and IoT networks with a single point of visibility and control. The 500 series is Wi-Fi CERTIFIED and supports Wi-Fi 6 (802.11ax) features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 500 series includes a limited lifetime warranty.
What is new supporting point:
Available in optional eco-friendly 10-packs
Entry-level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate
Support for orthogonal frequency-division multiple access (OFDMA) for enhanced multi-user efficiency, and WPA3 and Enhanced Open (OWE) for greater security
IoT-ready with built-in Bluetooth 5 and Zigbee support
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
Built-in technology that resolves sticky client issues and improves the performance of mobile Wi-Fi clients
What is new supporting point:
Available in optional eco-friendly 10-packs
Entry-level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate
Support for orthogonal frequency-division multiple access (OFDMA) for enhanced multi-user efficiency, and WPA3 and Enhanced Open (OWE) for greater security
IoT-ready with built-in Bluetooth 5 and Zigbee support
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
Built-in technology that resolves sticky client issues and improves the performance of mobile Wi-Fi clients
Key Features
- 2.4 GHz 574 Mbit/s
- 5 GHz 1200 Mbit/s
- Maximum data transfer rate: 1774 Mbit/s
- IEEE 802.11ax, IEEE 802.11mc
- WPA3, WPA, WPA2
- Power over Ethernet (PoE)
- Antennas quantity: 2 Internal Integrated antenna
Specifications
| Dimensions Weight | |
|---|---|
| Width | 160 mm |
| Height | 37 mm |
| Depth | 161 mm |
| Weight | 500 g |
| Antenna | |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antenna type | Internal |
| Battery | |
| Product colour | White |
| Certificates | |
| Compliance certificates | CE, Electromagneticcompatibility Emc, Federalcommunicationscommission Fcc, ISED, Lowvoltagedirective Lvd |
| Data transmission | |
| Maximum data transfer rate | 1774 |
| Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Ethernet LAN (RJ-45) ports | 1 |
| Operating relative humidity (H-H) | 5 - 93 |
| Recommended usage | Indoor |
| Storage relative humidity (H-H) | 5 - 93 |
| Ethernet LAN features | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Features | |
| 5 GHz | Yes |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 8.6.0.0 or later; HPE Aruba Networking Instant OS 8.6.0.0 or later; HPE Aruba Networking Wireless Operating System 10.0.0.0 or later |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps |

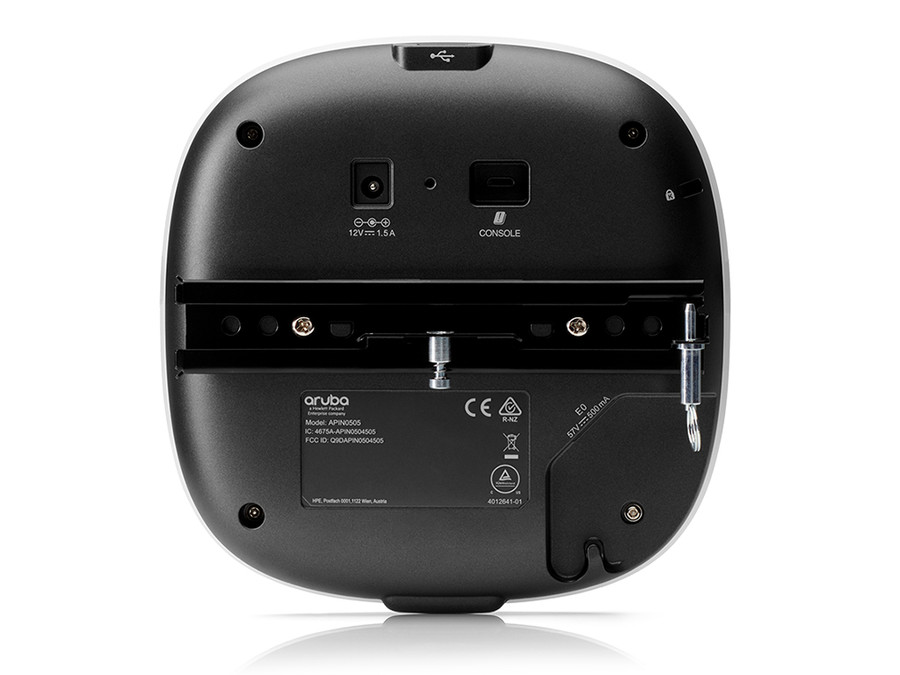

| I/O ports | E0: Ethernet wired network port (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot. |
| Maximum data transfer rate (5 GHz) | 1200 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 1024-QAM, 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, QPSK |
| Power over Ethernet (PoE) | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| USB connector type | USB Type-A |
| Network | |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
From the manufacturer
Rich content supplied by HPE via 1WorldSyncSpecifications
Data transmission
- Maximum data transfer rate
- 1774
Network
- Networking standards
- Ieee802 11ax, Ieee802 11mc
Antenna
- Antenna direction type
- Omni Directional
- Antenna features
- Integratedantenna
- Antenna type
- Internal
Features
- Height
- 37 mm
- Depth
- 161 mm
- 5 GHz
- Yes
- Compatible operating systems
- HPE Aruba Networking Wireless Operating System 8.6.0.0 or later; HPE Aruba Networking Instant OS 8.6.0.0 or later; HPE Aruba Networking Wireless Operating System 10.0.0.0 or later
- Frequency band
- 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps
- I/O ports
- E0: Ethernet wired network port (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot.
- Maximum data transfer rate (5 GHz)
- 1200
- MIMO
- Yes
- MIMO type
- Multiusermimo
- Modulation
- 1024 Qam, 16 Qam, 256 Qam, 64 Qam, Bpsk, Cck, Qpsk
- Power over Ethernet (PoE)
- Yes
- Security algorithms
- Wpa, Wpa2, Wpa3
- USB connector type
- Usbtype A
Design
- Product colour
- White
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- Ethernet LAN (RJ-45) ports
- 1
- Operating relative humidity (H-H)
- 5 - 93
- Recommended usage
- Indoor
- Storage relative humidity (H-H)
- 5 - 93
Dimensions Weight
- Width
- 160 mm
- Weight
- 500 g
Ethernet LAN features
- Ethernet LAN data rates
- 1000
