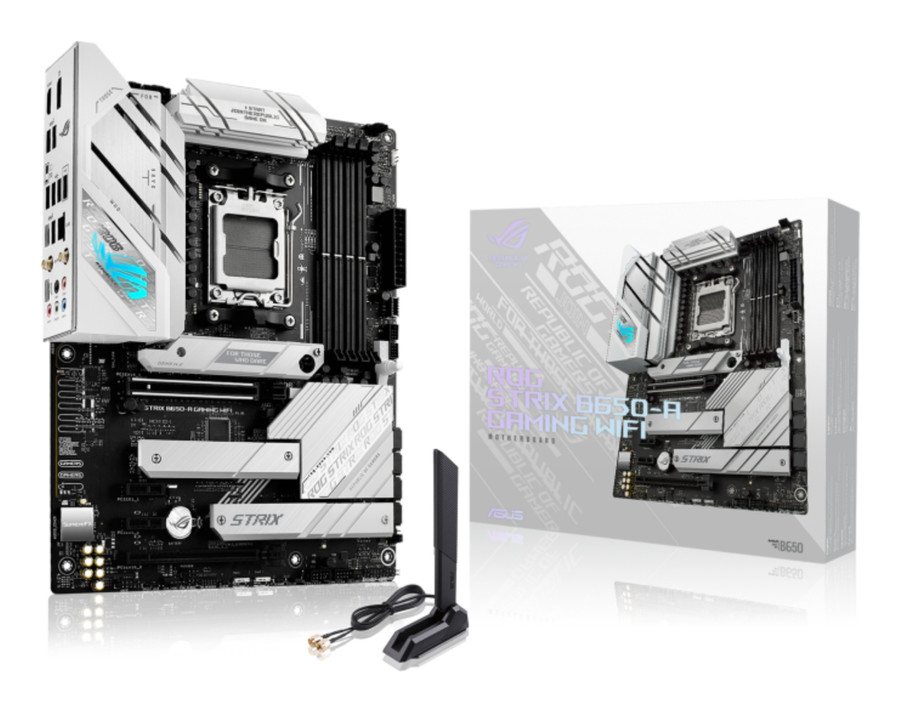

ASUS ROG STRIX B650-A GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-V, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Key Features
- AMD Socket AM5 AMD Ryzen™ 7
- PC ATX AMD B650 Realtek ALC4080 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.2
Specifications
| Dimensions Weight | |
|---|---|
| Width | 305 mm |
| Audio | |
| Audio chip | Realtek ALC4080 |
| Battery | |
| Product colour | Black, Silver |
| Camera | |
| Windows operating systems supported | Windows 11 x64 |
| Computer case | |
| USB 2.0 ports quantity | 4 |
| Computer system | |
| Maximum internal memory | 128 |
| Processor manufacturer | AMD |
| Cooling | |
| Supported processor sockets | Socket AM5 |
| Data transmission | |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Design | |
| Component for | PC |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of storage drives supported | 7 |
| Docking station | |
| HDMI ports quantity | 1 |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Features | |
| Cables included | SATA |
| Depth | 244 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard chipset | AMD B650 |
| On-board graphics card | No |
| Package depth | 265 |
| Package height | 71 |
| Package weight | 8997 |
| Package width | 280 |
| Processor socket | Socket AM5 |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| S/PDIF out connector | Yes |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive types | HDD & SSD |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Internal I/O | |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Memory | |
| Memory slots type | DIMM |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
