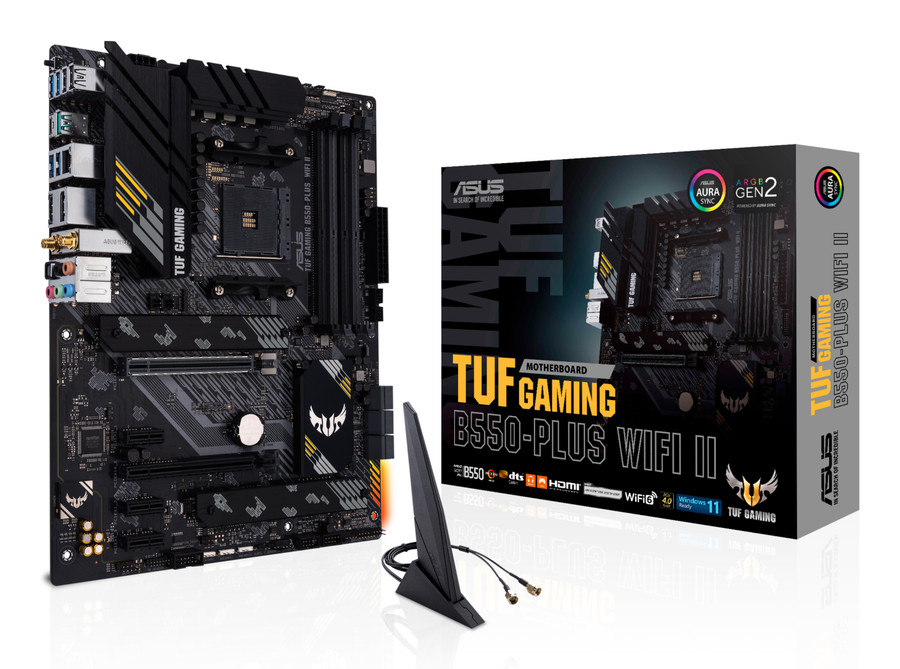

ASUS TUF GAMING B550-PLUS WIFI II. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Key Features
- AMD Socket AM4 AMD Ryzen 3000 Series
- PC ATX AMD B550 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA RAID support Number of storage drives supported: 8
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.2
Specifications
| Dimensions Weight | |
|---|---|
| Width | 305 mm |
| Weight | 945 g |
| Battery | |
| Product colour | Black |
| Camera | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Computer case | |
| USB 2.0 ports quantity | 2 |
| Computer system | |
| Maximum internal memory | 128 |
| Processor manufacturer | AMD |
| Cooling | |
| Supported processor sockets | Socket AM4 |
| Data transmission | |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Design | |
| Component for | PC |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of displays supported | 2 |
| Number of storage drives supported | 8 |
| Docking station | |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 3 |
| Features | |
| Cables included | SATA |
| Depth | 244 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Harmonized System (HS) code | 84733020 |
| Height | 75 |
| Motherboard chipset | AMD B550 |
| On-board graphics card | No |
| Packaging content | 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber package 1 x M.2 SSD screw package 1 x TUF Gaming sticker 1 x Support DVD 1 x TUF Certification card 1 x User guide |
| Processor socket | Socket AM4 |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Supported memory types | DDR4-SDRAM |
| Supported storage drive types | HDD & SSD |
| USB connector type | USB Type-A, USB Type-C |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Internal I/O | |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |
| Memory | |
| Memory slots type | DIMM |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
