Description

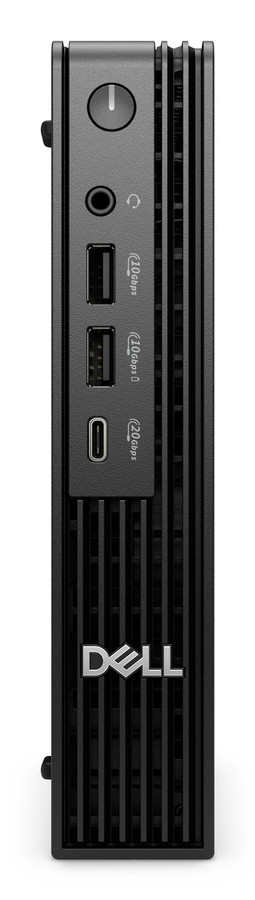

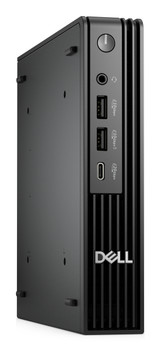

Big power. Small footprint.\nUltracompact desktop with superior performance, speeds and connectivity powered by Intel® Core™ Ultra (Series 2) desktop processors, up to U9.
Additional Information
- Total carbon footprint (kg of CO2e):
- 80.7
- Carbon emissions, manufacturing (kg of CO2e):
- 45.0306
- Carbon emissions, logistics (kg of CO2e):
- 2.2596
- Carbon emissions, energy usage (kg of CO2e):
- 32.8449
- Carbon emissions, end-of-life (kg of CO2e):
- 0.56
- PAIA version:
- GaBi version 1, 2024
- Chassis type:
- Micro PC
- Product colour:
- Black
- Cable lock slot:
- Yes
- Cable lock slot type:
- Kensington
- Placement supported:
- Horizontal/Vertical
- Display included:
- No
- Discrete graphics card:
- No
- On-board graphics card:
- Yes
- Discrete graphics card model:
- Not available
- On-board graphics card model:
- Intel Graphics
- On-board GPU manufacturer:
- Intel
- On-board graphics card family:
- Intel Graphics
- Internal memory:
- 16 GB
- Maximum internal memory:
- 64 GB
- Internal memory type:
- DDR5-SDRAM
- Memory layout (slots x size):
- 1 x 16 GB
- Memory slots:
- 2x SO-DIMM
- Memory channels:
- Single-channel
- Memory data transfer rate:
- 5600 MT/s
- Non-ECC:
- Yes
- Ethernet LAN:
- Yes
- Wi-Fi:
- Yes
- Ethernet LAN data rates:
- 10,100,1000 Mbit/s
- Cabling technology:
- 10/100/1000Base-T(X)
- Top Wi-Fi standard:
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards:
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
- WLAN controller manufacturer:
- Intel
- Antenna type:
- 2x2
- Bluetooth:
- Yes
- WLAN controller model:
- Intel Wi-Fi 6E AX211
- LAN controller:
- Intel WGI219LM
- Antenna design:
- Internal
- AI software frameworks supported by NPU:
- DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
- Neural processor unit (NPU):
- Intel AI Boost
- Sparsity support:
- Yes
- Windows Studio effects support:
- Yes
- Total processor performance up to:
- 27 TOPs
- NPU performance up to:
- 13 TOPs
- GPU performance up to:
- 6 TOPs
- Operating temperature (T-T):
- 10 - 35 °C
- Storage temperature (T-T):
- -40 - 65 °C
- Operating relative humidity (H-H):
- 20 - 80%
- Storage relative humidity (H-H):
- 5 - 95%
- Operating altitude:
- -15.2 - 3048 m
- Non-operating altitude:
- -15.2 - 10668 m
- Operating vibration:
- 0.26 G
- Non-operating vibration:
- 1.37 G
- Operating shock:
- 40 G
- Non-operating shock:
- 105 G
- Input device model:
- Dell Pro Keyboard and Mouse - KM5221W - UK (QWERTY) - Black
- Product type:
- Mini PC
- Motherboard chipset:
- Intel Q870
- Audio chip:
- Realtek ALC3204
- Audio system:
- High Definition Audio
- Trusted Platform Module (TPM):
- Yes
- Trusted Platform Module (TPM) version:
- 2.0
- Market positioning:
- Business
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 2.0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 4.0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
- 1.0
- DisplayPorts quantity:
- 3.0
- DisplayPort version:
- 1.4a
- Ethernet LAN (RJ-45) ports:
- 1.0
- Combo headphone/mic port:
- Yes
- DC-in jack:
- Yes
- Number of rear USB ports:
- 5.0
- Number of front USB ports:
- 3.0
- Number of front audio ports:
- 1.0
- USB 3.2 Gen 2x2 Type-C ports quantity:
- 1.0
- Power supply:
- 180 W
- Power supply input voltage:
- 100 - 240 V
- Power supply input frequency:
- 50 / 60 Hz
- Processor family:
- Intel Core Ultra 5
- Processor manufacturer:
- Intel
- Processor model:
- 235
- Processor generation:
- Intel Core Ultra (Series 2)
- Processor cores:
- 14.0
- Processor threads:
- 14.0
- Processor boost frequency:
- 5 GHz
- Performance cores:
- 6.0
- Efficient cores:
- 8.0
- Performance-core Max Turbo Frequency:
- 5 GHz
- Efficient-core Max Turbo Frequency:
- 4.4 GHz
- Performance-core base frequency:
- 3.4 GHz
- Efficient-core base frequency:
- 2.9 GHz
- Processor cache:
- 24 MB
- Processor cache type:
- Smart Cache
- Number of processors installed:
- 1.0
- Processor base power:
- 65 W
- Maximum turbo power:
- 121 W
- Operating system installed:
- Windows 11 Pro
- Operating system architecture:
- 64-bit
- Trial software:
- Activate Your Microsoft 365 For A 30 Day Trial
- Total storage capacity:
- 512 GB
- Optical drive type:
- No
- Storage media:
- SSD
- Number of storage drives installed:
- 1.0
- Total SSDs capacity:
- 512 GB
- Number of SSDs installed:
- 1.0
- SSD capacity:
- 512 GB
- SSD interface:
- PCI Express 4.0
- NVMe:
- Yes
- SSD form factor:
- M.2
- SSD memory type:
- TLC
- Sustainability certificates:
- ENERGY STAR, EPEAT Climate +, EPEAT Gold, TCO
- Doesn't contain:
- PVC/BFR
- Width:
- 36 mm
- Depth:
- 178 mm
- Height:
- 182 mm
- Weight:
- 1.43 kg
