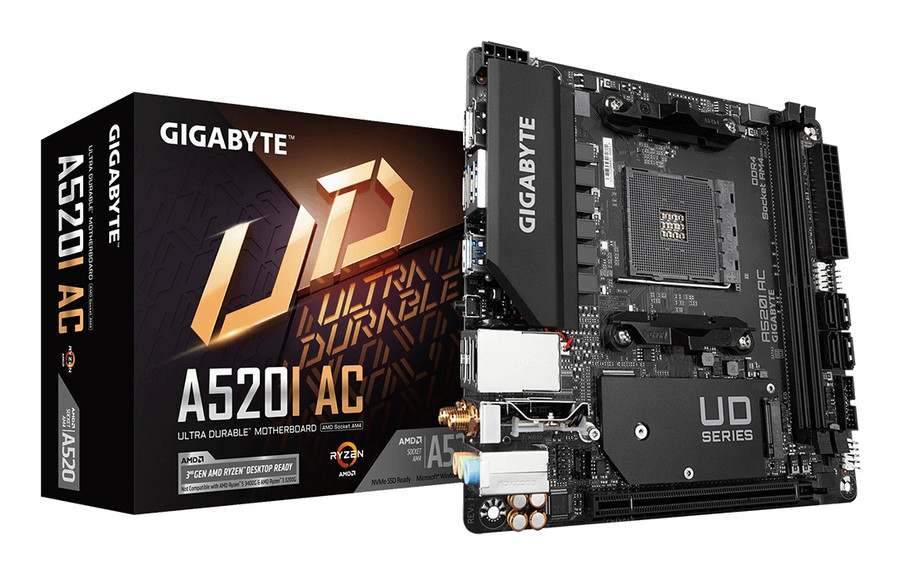

GIGABYTE A520I AC Motherboard. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Key Features
- AMD Socket AM4 AMD Ryzen 3000 Series
- PC mini ITX AMD A520 Realtek ALC887 7.1 channels
- DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB
- M.2, SATA III RAID support Number of storage drives supported: 5
- BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
- Gigabit Ethernet Wi-Fi Wi-Fi 5 (802.11ac) Bluetooth 4.2
Specifications
| Dimensions Weight | |
|---|---|
| Width | 170 mm |
| Audio | |
| Audio chip | Realtek ALC887 |
| Battery | |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 |
| Number of battery cells | 1 |
| Product colour | Black |
| Camera | |
| Maximum resolution | 5120 x 2880 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Computer case | |
| USB 2.0 ports quantity | 2 |
| Computer system | |
| Maximum internal memory | 64 |
| Processor manufacturer | AMD |
| Cooling | |
| Supported processor sockets | Socket AM4 |
| Data transmission | |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Design | |
| Component for | PC |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of displays supported | 3 |
| Number of storage drives supported | 5 |
| Docking station | |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| Features | |
| Depth | 170 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Height | 35 |
| Motherboard chipset | AMD A520 |
| Number of HDDs supported | 4 |
| On-board graphics card | No |
| Package depth | 189 |
| Package height | 78 |
| Package weight | 800 |
| Package width | 222 |
| Processor socket | Socket AM4 |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Supported memory types | DDR4-SDRAM |
| Warranty period | 3 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Internal I/O | |
| Front panel connector | Yes |
| Memory | |
| Memory slots type | DIMM |
