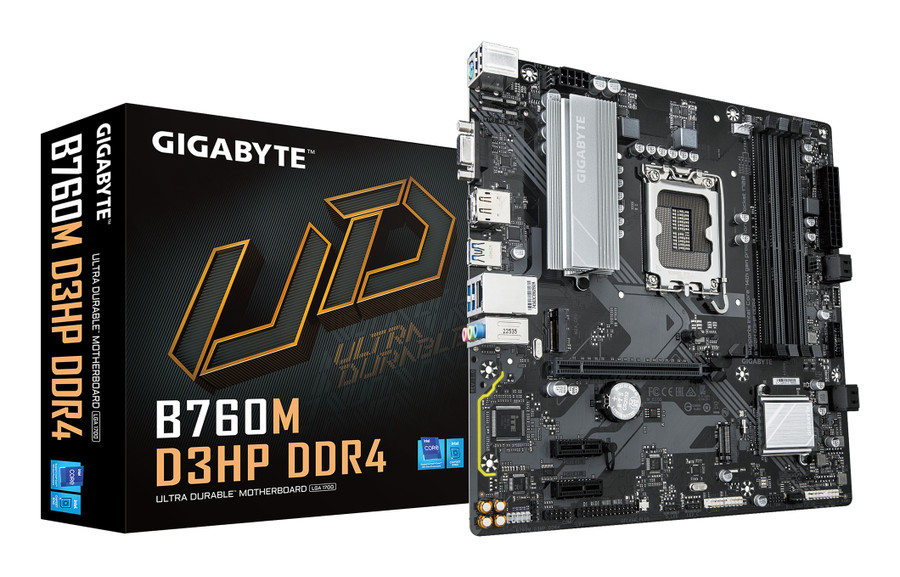

GIGABYTE B760M D3HP DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
Key Features
- Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- PC micro ATX Intel B760 Express 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
- Gigabit Ethernet
Specifications
| Dimensions Weight | |
|---|---|
| Width | 244 mm |
| Battery | |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 |
| Number of battery cells | 1 |
| Product colour | Brown |
| Camera | |
| Maximum resolution | 4096 x 2304 |
| Windows operating systems supported | Windows 10, Windows 11 |
| Computer case | |
| USB 2.0 ports quantity | 2 |
| Computer system | |
| Maximum internal memory | 128 |
| Processor manufacturer | Intel |
| Cooling | |
| Supported processor sockets | LGA 1700 |
| Design | |
| Component for | PC |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of storage drives supported | 6 |
| Docking station | |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Features | |
| Depth | 244 |
| Digital audio optical out | 3 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| Ethernet interface type | Gigabit Ethernet |
| Height | 35 |
| Motherboard chipset | Intel B760 Express |
| Number of HDDs supported | 4 |
| Package depth | 265 |
| Package height | 54 |
| Package weight | 990 |
| Package width | 265 |
| Power source type | ATX |
| Processor socket | LGA 1700 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| S/PDIF out connector | Yes |
| Supported memory types | DDR4-SDRAM |
| Supported storage drive types | HDD & SSD |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 1 |
| Warranty period | 3 |
| Wi-Fi | No |
| Internal I/O | |
| 12V power connector | Yes |
| Front panel connector | Yes |
| Memory | |
| Memory slots type | DIMM |
