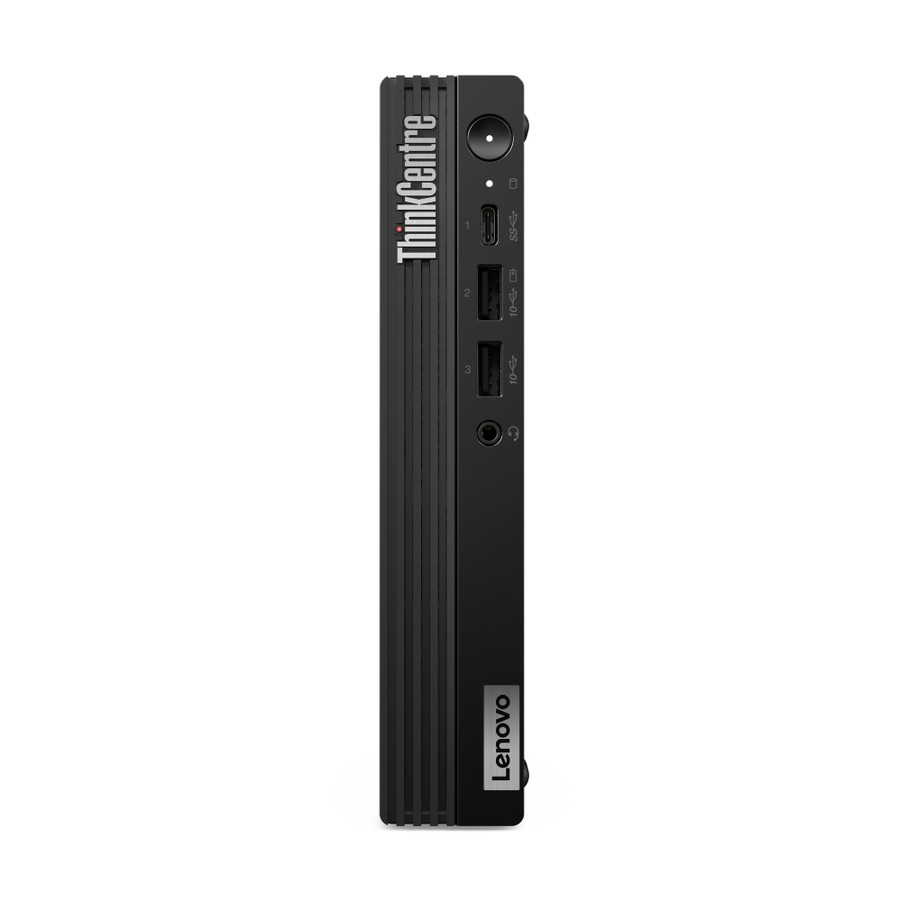

Lenovo ThinkCentre M70q Gen 5. Processor family: Intel® Core™ i7, Processor model: i7-14700T. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 135 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.25 kg. Product colour: Black
Key Features
- Mini PC Black 135 W
- Intel® Core™ i7 i7-14700T Processor cores: 20
- 16 GB DDR5-SDRAM 5600 MHz 1 x 16 GB
- 512 GB SSD
- Intel UHD Graphics 770
- Ethernet LAN 100,1000 Mbit/s Wi-Fi 6E (802.11ax) Bluetooth 5.3
- Windows 11 Pro 64-bit
Specifications
| Dimensions Weight | |
|---|---|
| Width | 179 mm |
| Height | 36.5 mm |
| Depth | 182.9 mm |
| Weight | 1250 g |
| Build Materials Chassis Design | |
| Chassis Type | Minipc |
| Antenna | |
| Antenna type | 2x2 |
| Audio | |
| Audio chip | Realtek ALC233VB |
| Audio system | High Definition Audio |
| Number of speakers | 1 |
| Battery | |
| Product colour | Black |
| Camera | |
| Operating system installed | Windows 11 Pro |
| Computer case | |
| Power supply | 135 |
| USB 2.0 ports quantity | 1 |
| Computer system | |
| Internal memory | 16 |
| Maximum internal memory | 64 |
| Processor cache | 33 |
| Processor cores | 20 |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor manufacturer | Intel |
| Processor model | i7-14700T |
| Data transmission | |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Operating relative humidity (H-H) | 20 - 80 |
| Operating temperature (T-T) | 5 - 35 |
| Product type | Mini PC (<= 3L) |
| Storage relative humidity (H-H) | 10 - 90 |
| Storage temperature (T-T) | -40 - 60 |
| Display | |
| On-board graphics card model | Intel UHD Graphics 770 |
| Docking station | |
| Card reader integrated | No |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN features | |
| Ethernet LAN data rates | 100, 1000 Mbit/s |
| Features | |
| Discrete graphics card model | Not available |
| DisplayPorts quantity | 1 |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
| Motherboard chipset | Intel Q670 |
| Mouse included | Yes |
| Number of SSDs installed | 1 |
| NVMe | Yes |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| Package depth | 141 |
| Package height | 268 |
| Package weight | 2848 |
| Package width | 490 |
| Processor boost frequency | 5.2 |
| Processor cache type | Smart Cache |
| Processor threads | 28 |
| SSD capacity | 512 |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| Storage media | SSD |
| Total storage capacity | 512 |
| Trusted Platform Module (TPM) | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Graphics | |
| Discrete graphics card | No |
| On-board GPU manufacturer | Intel |
| Keyboard | |
| Keyboard included | Yes |
| Network | |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Performance | |
| Efficient cores | 12 |
| Performance cores | 8 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Processor | |
| Efficient-core base frequency | 0.9 |
| Efficient-core Max Turbo Frequency | 3.7 |
| Performance-core base frequency | 1.3 |
| Performance-core Max Turbo Frequency | 5 |
| Storage | |
| Total SSDs capacity | 512 |
