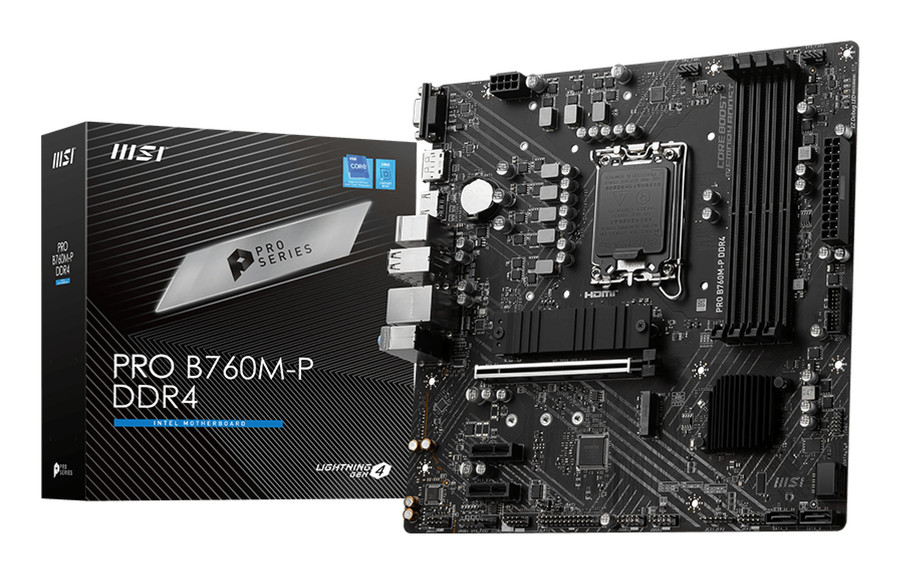

MSI PRO B760M-P DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Key Features
- Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold
- PC micro ATX Intel B760 Realtek ALC897 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
- M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet
Specifications
| Dimensions Weight | |
|---|---|
| Width | 243.84 mm |
| Audio | |
| Audio chip | Realtek ALC897 |
| Battery | |
| Product colour | Black |
| Camera | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Computer case | |
| USB 2.0 ports quantity | 4 |
| Computer system | |
| Maximum internal memory | 128 |
| Processor manufacturer | Intel |
| Cooling | |
| Supported processor sockets | LGA 1700 |
| Design | |
| Component for | PC |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of storage drives supported | 6 |
| Docking station | |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Features | |
| Depth | 243.84 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard chipset | Intel B760 |
| On-board graphics card | No |
| Power source type | ATX |
| Processor socket | LGA 1700 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Supported memory types | DDR4-SDRAM |
| Wi-Fi | No |
| Internal I/O | |
| Front panel connector | Yes |
| Memory | |
| Memory slots type | DIMM |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
