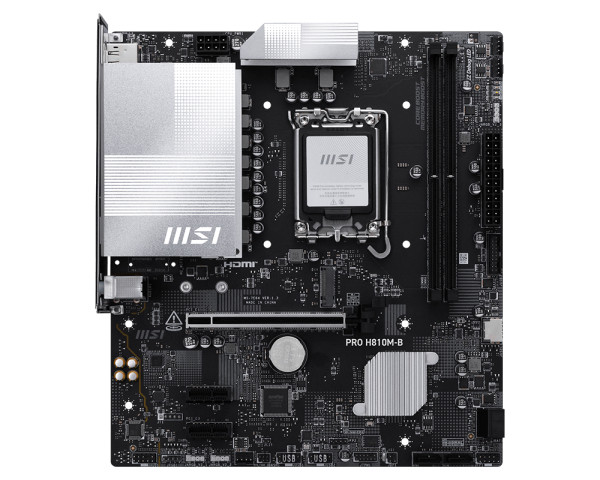

MSI PRO H810M-B. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Key Features
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC micro ATX Intel H810 Realtek ALC897 7.1 channels
- DDR5-SDRAM 2 Maximum internal memory: 128 GB
- HDD & SSD SATA III Number of storage drives supported: 5
- 2.5 Gigabit Ethernet
Specifications
| Dimensions Weight | |
|---|---|
| Width | 220 mm |
| Audio | |
| Audio chip | Realtek ALC897 |
| Camera | |
| Windows operating systems supported | Windows 11 |
| Computer case | |
| USB 2.0 ports quantity | 4 |
| Computer system | |
| Maximum internal memory | 128 |
| Processor manufacturer | Intel |
| Design | |
| Component for | PC |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of storage drives supported | 5 |
| Docking station | |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Features | |
| Cables included | SATA |
| Depth | 243.84 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard chipset | Intel H810 |
| Processor socket | LGA 1851 (Socket V1) |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive types | HDD & SSD |
| Wi-Fi | No |
| Internal I/O | |
| 12V power connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 3 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
