Description

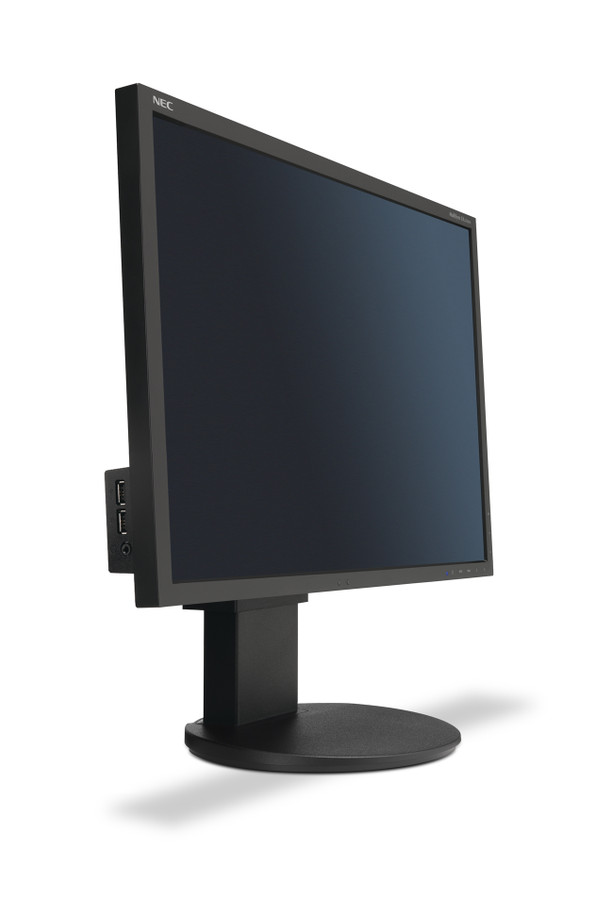

NEC MultiSync® EA223WM features an extremely thin LED backlight panel which results in an ultra-modern and slim design in combination with a premium feature set for the corporate office use. Ambient Light and Human Sensors enforce the sustainable product concept while offering improved ergonomics with 130 mm height adjustability. Moreover the display offers broad connectivity with three inputs DisplayPort, DVID and D-Sub.
Ideal for the corporate that demand style and future proof technology.
- Ambient Light Sensor - with Auto Brightness function always sets optimised brightness level according to ambient light and content conditions.
- Ergonomic Office - full height adjustability (130 mm), swivel, tilt and pivot functionality ensures perfect individual ergonomic set-up.
- Feature Set for Perfect Office Use - Integrated Speakers, headphone jack and USB Hub provide excellent options for office communication.
- Green Product Concept - Eco Mode and Carbon Footprint Meter / Carbon Savings Meter , Ambient Light Sensor.
- Human Sensor - detects the presence of a person in front of the screen; display switches on/off automatically depending on the presence of the user.
- Image display - 22inch 16:10 TN with LED backlight.
- Vesa Mount (100 mm) - allows to install the monitor via various mounting solutions.
- Special Characteristics - Carbon Footprint Meter ; Carbon Savings Meter ; ControlSync® ; Customize Setting ; NaViSet®and NaViSet®Administrator compatible; sRGB Support; USB ver. 2.0 (4 down / 1 up); WindowsVistaCertifiedLogo
Ideal for the corporate that demand style and future proof technology.
- Ambient Light Sensor - with Auto Brightness function always sets optimised brightness level according to ambient light and content conditions.
- Ergonomic Office - full height adjustability (130 mm), swivel, tilt and pivot functionality ensures perfect individual ergonomic set-up.
- Feature Set for Perfect Office Use - Integrated Speakers, headphone jack and USB Hub provide excellent options for office communication.
- Green Product Concept - Eco Mode and Carbon Footprint Meter / Carbon Savings Meter , Ambient Light Sensor.
- Human Sensor - detects the presence of a person in front of the screen; display switches on/off automatically depending on the presence of the user.
- Image display - 22inch 16:10 TN with LED backlight.
- Vesa Mount (100 mm) - allows to install the monitor via various mounting solutions.
- Special Characteristics - Carbon Footprint Meter ; Carbon Savings Meter ; ControlSync® ; Customize Setting ; NaViSet®and NaViSet®Administrator compatible; sRGB Support; USB ver. 2.0 (4 down / 1 up); WindowsVistaCertifiedLogo
Additional Information
- Built-in speaker(s):
- Yes
- Product colour:
- Black
- VESA mounting:
- Yes
- Screen shape:
- Flat
- LED indicators:
- Power
- Display diagonal:
- 55.9 cm (22)"
- Display technology:
- LED
- Display resolution:
- 1680 x 1050 pixels
- HD type:
- WSXGA+
- Touchscreen:
- No
- Panel type:
- TN
- Maximum refresh rate:
- 60 Hz
- Contrast ratio (typical):
- 1000:1
- Native aspect ratio:
- 16:10
- Display number of colours:
- 16.78 million colours
- Backlight type:
- W-LED
- Display brightness (typical):
- 250 cd/m²
- Supported graphics resolutions:
- 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+)
- Viewing angle, horizontal:
- 178°
- Viewing angle, vertical:
- 178°
- Pixel pitch:
- 0.282 x 0.282 mm
- Aspect ratio:
- 16:10
- Contrast ratio (dynamic):
- 25000:1
- Digital horizontal frequency:
- 31.5 - 82.3 kHz
- Digital vertical frequency:
- 56 - 75 Hz
- Colour gamut standard:
- sRGB
- Cable lock slot:
- Yes
- Height adjustment:
- Yes
- Panel mounting interface:
- 100 x 100 mm
- Cable lock slot type:
- Kensington
- Adjustable height (max):
- 13 cm
- Pivot:
- Yes
- Pivot angle:
- 0 - 90°
- Swivelling:
- Yes
- Swivel angle range:
- -170 - 170°
- Tilt adjustment:
- Yes
- Tilt angle range:
- -5 - 30°
- On Screen Display (OSD):
- Yes
- Plug and Play:
- Yes
- On/off switch:
- Yes
- Certification:
- CE; Energy Star 5.0; FCC Class B; GEEA/Energy Label; ISO 9241-307 (pixel failure class I); MPR III; PCT/Gost; RoHS; TCO 6.0; TÜV Ergonomics; TÜV GS; UL/C-UL, CSA
- 3D:
- No
- Built-in camera:
- No
- RMS rated power:
- 2 W
- Operating temperature (T-T):
- 5 - 35 °C
- Operating relative humidity (H-H):
- 20 - 80%
- Bluetooth:
- No
- Number of speakers:
- 2.0
- Energy efficiency class (old):
- A
- ECO mode:
- Yes
- Display:
- LED
- Power consumption (economy mode):
- 12 W
- Light sensor:
- Yes
- Cables included:
- AC, DisplayPort, USB
- Quick start guide:
- Yes
- TV tuner integrated:
- No
- DVI port:
- Yes
- DisplayPorts quantity:
- 1.0
- Ethernet LAN:
- No
- Wi-Fi:
- No
- Headphone outputs:
- 1.0
- Built-in USB hub:
- Yes
- HDMI:
- No
- Headphone out:
- Yes
- USB hub version:
- 2.0
- USB Type-A downstream ports quantity:
- 4.0
- VGA (D-Sub) ports quantity:
- 1.0
- HDCP:
- Yes
- AC (power) in:
- Yes
- DVI-D ports quantity:
- 1.0
- Number of upstream ports:
- 1.0
- Power consumption (typical):
- 12 W
- Power consumption (max):
- 25 W
- Annual energy consumption:
- 18 kWh
- Power consumption (PowerSave):
- 0.5 W
- Response time:
- 5 ms
- Sustainability certificates:
- EPEAT Gold, ENERGY STAR
- Windows operating systems supported:
- Yes
- Thin client installed:
- No
- Width (with stand):
- 503.5 mm
- Depth (with stand):
- 218 mm
- Height (with stand):
- 384 mm
- Weight (with stand):
- 5.6 kg
- Width (without stand):
- 503.5 mm
