Overview

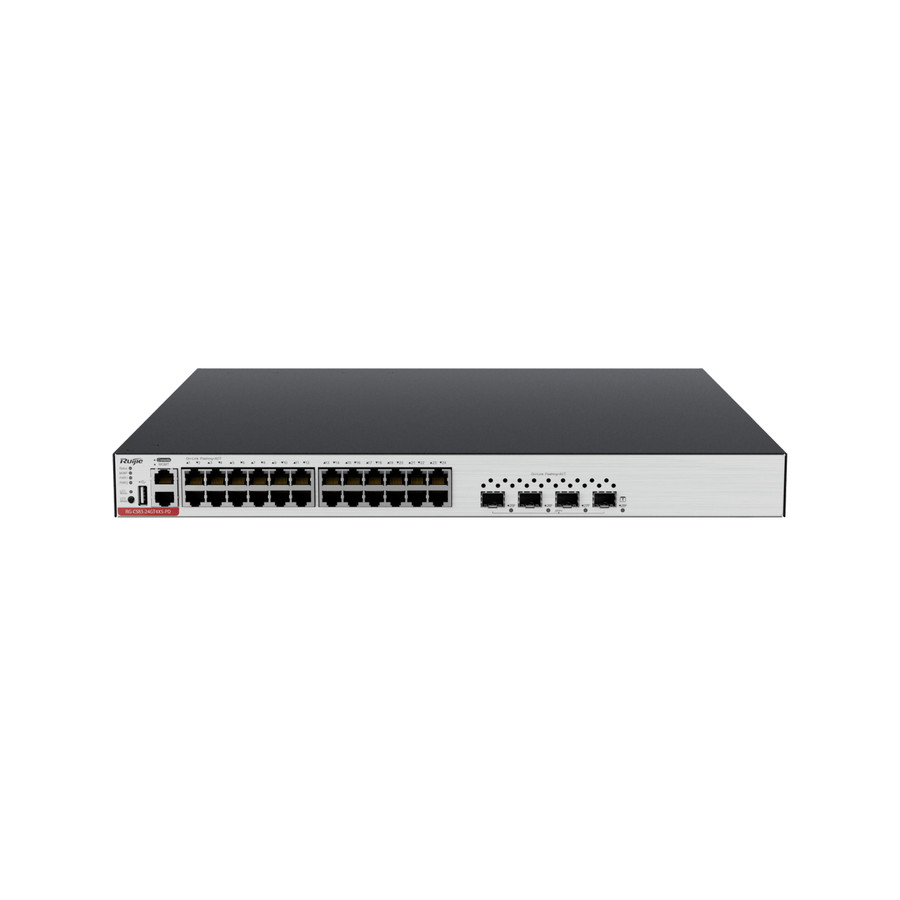

Layer 3 Access Switch for 10G Uplink RG-CS83-24GT4XS-PD
Full-gigabit access switch for large-sized enterprise and campus LANs, with 4 × 10G uplink optical ports for high-speed data transmission
24 x 1000 Mbps Ethernet ports with auto-negotiation, PoE+ supported, providing high-speed network experience for short-distance services
Compact switch, easy to adapt to a variety of environments
The switch features user-friendly installation.The full range of unified 220mm sizes can be adapted to a variety of environments.It can be mounted on a wall, on a desk or under a desk.
Dual-boot at the hardware level, Offering Carrier-class Reliability
Two flash chips used to store boot software to achieve hardware-level boot redundancy,
avoiding switch boot failures due to flash chip faults
10 kV Surge Protection
Industry-leading port surge protection capability.The ports can endure 10 kV surge. The PoE power modules can endure 8 kV surges and non-PoE ones can withstand 6 kV surges, strong protection ability, adaptation to harsh environment.
Full-gigabit access switch for large-sized enterprise and campus LANs, with 4 × 10G uplink optical ports for high-speed data transmission
24 x 1000 Mbps Ethernet ports with auto-negotiation, PoE+ supported, providing high-speed network experience for short-distance services
Compact switch, easy to adapt to a variety of environments
The switch features user-friendly installation.The full range of unified 220mm sizes can be adapted to a variety of environments.It can be mounted on a wall, on a desk or under a desk.
Dual-boot at the hardware level, Offering Carrier-class Reliability
Two flash chips used to store boot software to achieve hardware-level boot redundancy,
avoiding switch boot failures due to flash chip faults
10 kV Surge Protection
Industry-leading port surge protection capability.The ports can endure 10 kV surge. The PoE power modules can endure 8 kV surges and non-PoE ones can withstand 6 kV surges, strong protection ability, adaptation to harsh environment.
Key Features
- Managed L3
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G support
- MAC address table: 32000 entries Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC/PoE Power over Ethernet (PoE)
Specifications
| Dimensions Weight | |
|---|---|
| Width | 442 mm |
| Height | 43 mm |
| Depth | 420 mm |
| Weight | 4300 g |
| Battery | |
| Power protection features | Surge protection |
| Product colour | Grey |
| Camera | |
| Built-in processor | Yes |
| Processor frequency | 1200 |
| Computer system | |
| Internal memory | 1000 |
| Cooling | |
| Noise level | 51 |
| Number of fans | 1 |
| Data transmission | |
| Switching capacity | 128 |
| Design | |
| Form factor | 1U |
| Operating relative humidity (H-H) | 10 - 90 |
| Rack mounting | Yes |
| Storage relative humidity (H-H) | 5 - 95 |
| Features | |
| AC input voltage | 90 - 264 |
| Flash memory | 2000 |
| IPv4 & IPv6 features | Ipv6sourceaddressvalidationimprovement Savi |
| IPv4 multicast entries | 2500 |
| IPv6 multicast entries | 1200 |
| Manual | Yes |
| Package depth | 565 |
| Package height | 172 |
| Package width | 570 |
| Power over Ethernet (PoE) | Yes |
| Security algorithms | HTTPS, SSH, Ssh 2 |
| Switch layer | L3 |
| Switch type | Managed |
| Virtual LAN features | Interface Basedvlan, IP subnet–based VLAN, MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| VLAN support | Yes |
| Network | |
| 10G support | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az |
| Performance | |
| Routing protocols | OSPFv2, OSPFv3, RIP, RIPng, VRRP |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabitethernet 10 100 1000 |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, Dhcpv6server, DHCPv6 snooping |
| IP-MAC-Port binding | Yes |
From the manufacturer
Rich content supplied by Ruijie Networks via 1WorldSyncSpecifications
Performance
- Routing protocols
- Ospfv2, Ospfv3, Rip, Ripng, Vrrp
Battery
- Power protection features
- Surgeprotection
Camera
- Built-in processor
- Yes
- Processor frequency
- 1200 MHz
Data transmission
- Switching capacity
- 128
Network
- 10G support
- Yes
- Networking standards
- Ieee802 1p, Ieee802 3af, Ieee802 3ah, Ieee802 3at, Ieee802 3az
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabitethernet 10 100 1000
Security
- DHCP features
- Dhcpclient, Dhcprelay, Dhcpserver, Dhcpsnooping, Dhcpv6client, Dhcpv6relay, Dhcpv6server, Dhcpv6snooping
- IP-MAC-Port binding
- Yes
Computer system
- Internal memory
- 1000 GB
Features
- Height
- 43 mm
- Depth
- 420 mm
- AC input voltage
- 90 - 264
- Flash memory
- 2000
- IPv4 & IPv6 features
- Ipv6sourceaddressvalidationimprovement Savi
- IPv4 multicast entries
- 2500
- IPv6 multicast entries
- 1200
- Manual
- Yes
- Package depth
- 565
- Package height
- 172
- Package width
- 570
- Power over Ethernet (PoE)
- Yes
- Security algorithms
- Https, Ssh, Ssh 2
- Switch layer
- L3
- Switch type
- Managed
- Virtual LAN features
- Interface Basedvlan, Ipsubnet Basedvlan, Macaddress Basedvlan, Privatevlan, Protocol Basedvlan, Voicevlan
- VLAN support
- Yes
Design
- Product colour
- Grey
- Form factor
- 1U
- Operating relative humidity (H-H)
- 10 - 90
- Rack mounting
- Yes
- Storage relative humidity (H-H)
- 5 - 95
Dimensions Weight
- Width
- 442 mm
- Weight
- 4300 g
Cooling
- Noise level
- 51
- Number of fans
- 1
