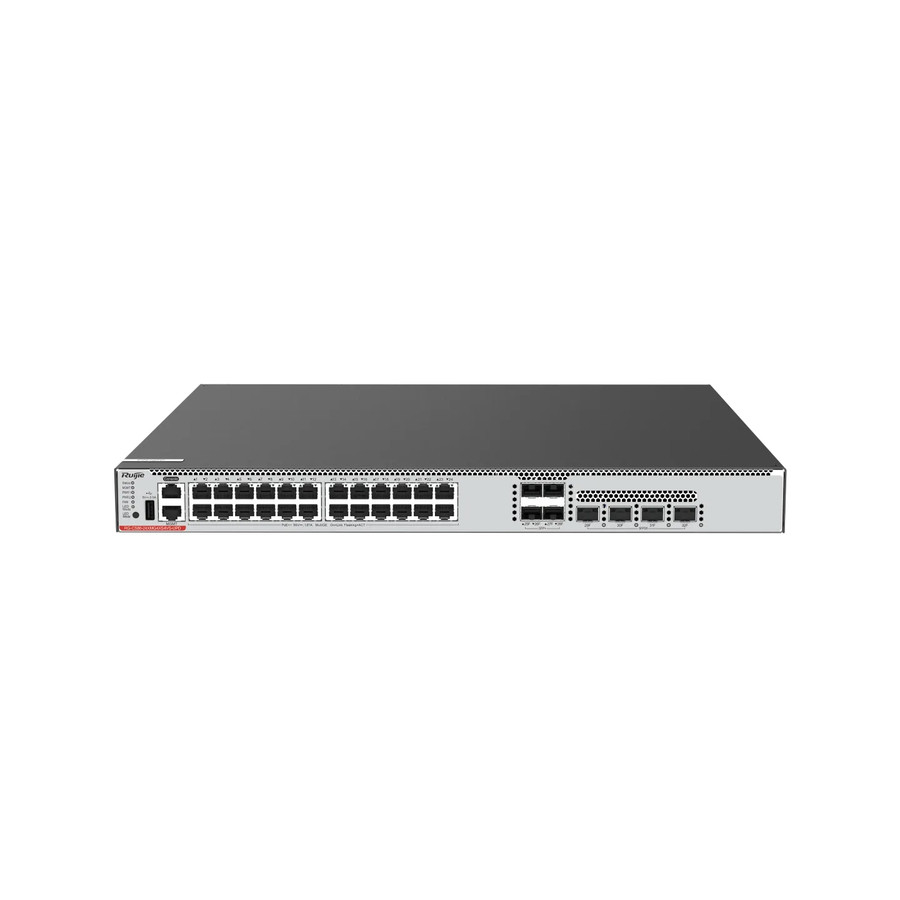

Ruijie Networks RG-CS86-24XMG4XS4VS-UPD network switch Managed 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
Add to wish list
Ruijie Networks SKU: RG-CS86-24XMG4XS4VS-UPD

Ruijie Networks RG-CS86-24XMG4XS4VS-UPD network switch Managed 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey

Read reviews
£9,659.96 ex VAT
£11,591.95 inc VAT
in stock

Adding to cart… The item has been added
Add to wish list

In stock ships from Canterbury, Kent

Buying in volume?Get a trade quote for larger orders

Email us Trade enquiry form
  • Free & easy returnsUnused, in original packaging
  • Price Match PromiseSeen it cheaper? Tell us
  • VAT invoiceIncluded with every order

Overview

RG-CS86-24XMG4XS4VS-UPD, 10GE Multi-rate Access Switch
24 x service ports: 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps access, 4 x 10GE SFP+ ports and 4 x 25GE SFP28 ports for uplink, enabling flexible networking High-power PoE++, offering up to 90 W output and adapting to services in Wi-Fi 6E and Wi-Fi 7 eras

Hardware Redundancy, Guaranteed Service Continuity and Network Connectivity
Hardware-Level Boot Redundancy
Two Flash chips are used to store the system Boot program for hardware-level Boot redundancy, avoiding device failure caused by a failed Flash chip.

VSU Virtualization, Flexible Networking and High Performance
Millisecond Failover
Connected by an aggregate link, the VSU virtual system and peripherals switch links in milliseconds to ensure service continuity in case of a failure.

Network Security Policies and Real-Time Monitoring, Delivering Enhanced Network Robustness
CPP protects the CPU from data attacks to ensure CPU stability under high usage, achieving significant improvement in the device's security performance.

Intelligent Speed Regulation and Auto Sleeping, Reducing Energy Consumption and Noise
Intelligent fan speed regulation based on monitored component temperatures, saving energy, Auto service port sleeping, reducing device power consumption

Key Features

  • Managed Web-based management
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • 10G support
  • MAC address table: 32768 entries Switching capacity: 760 Gbit/s
  • Access Control List (ACL)
  • Rack mounting
  • AC/DC/PoE Power over Ethernet (PoE)

Specifications

Dimensions Weight
Width442 mm
Height43 mm
Depth220 mm
Weight6110 g
Battery
Power protection featuresSurge protection
Product colourGrey
Call management
Web-based managementYes
Camera
Built-in processorYes
Processor frequency1250
Computer system
Internal memory1000
Cooling
Number of fans3
Data transmission
Switching capacity760
Design
Operating relative humidity (H-H)10 - 90
Rack mountingYes
Storage relative humidity (H-H)5 - 95
Ethernet LAN features
Ethernet LAN data rates100, 1000 Mbit/s, 2500 Mbit/s, 5000, 10000 Mbit/s
Features
AC input voltage90 - 264
Flash memory1000
IPv4 multicast entries4000
IPv6 multicast entries2000
ManualYes
Package depth563
Package height210
Package weight8120
Package width563
Power over Ethernet (PoE)Yes
Security algorithmsHTTPS, SNMP, SNMPv2, SNMPv3, SSH, Ssh 2
Switch typeManaged
Virtual LAN featuresIP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
VLAN supportYes
Network
10G supportYes
Networking standardsIEEE 802.1Q, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Packaging content
Rack mount kitYes
Performance
Routing protocolsBGP4+, Bgp4, Is Is, OSPFv2, OSPFv3, RIP, RIPng
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports type10gethernet 100 1000 10000
Security
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 snooping
IP-MAC-Port bindingYes

Specifications

Performance

Routing protocols
Bgp4, Bgp4, Is Is, Ospfv2, Ospfv3, Rip, Ripng

Battery

Power protection features
Surgeprotection

Camera

Built-in processor
Yes
Processor frequency
1250 MHz

Data transmission

Switching capacity
760

Network

10G support
Yes
Networking standards
Ieee802 1q, Ieee802 3ad, Ieee802 3af, Ieee802 3at, Ieee802 3bt

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
10gethernet 100 1000 10000

Security

DHCP features
Dhcpclient, Dhcprelay, Dhcpserver, Dhcpsnooping, Dhcpv6client, Dhcpv6relay, Dhcpv6snooping
IP-MAC-Port binding
Yes

Computer system

Internal memory
1000 GB

Features

Height
43 mm
Depth
220 mm
AC input voltage
90 - 264
Flash memory
1000
IPv4 multicast entries
4000
IPv6 multicast entries
2000
Manual
Yes
Package depth
563
Package height
210
Package weight
8120
Package width
563
Power over Ethernet (PoE)
Yes
Security algorithms
Https, Snmp, Snmpv2, Snmpv3, Ssh, Ssh 2
Switch type
Managed
Virtual LAN features
Ipsubnet Basedvlan, Macaddress Basedvlan, Port Basedvlan, Privatevlan, Protocol Basedvlan, Voicevlan
VLAN support
Yes

Design

Product colour
Grey
Operating relative humidity (H-H)
10 - 90
Rack mounting
Yes
Storage relative humidity (H-H)
5 - 95

Dimensions Weight

Width
442 mm
Weight
6110 g

Call management

Web-based management
Yes

Cooling

Number of fans
3

Ethernet LAN features

Ethernet LAN data rates
100, 1000, 2500, 5000, 10000
