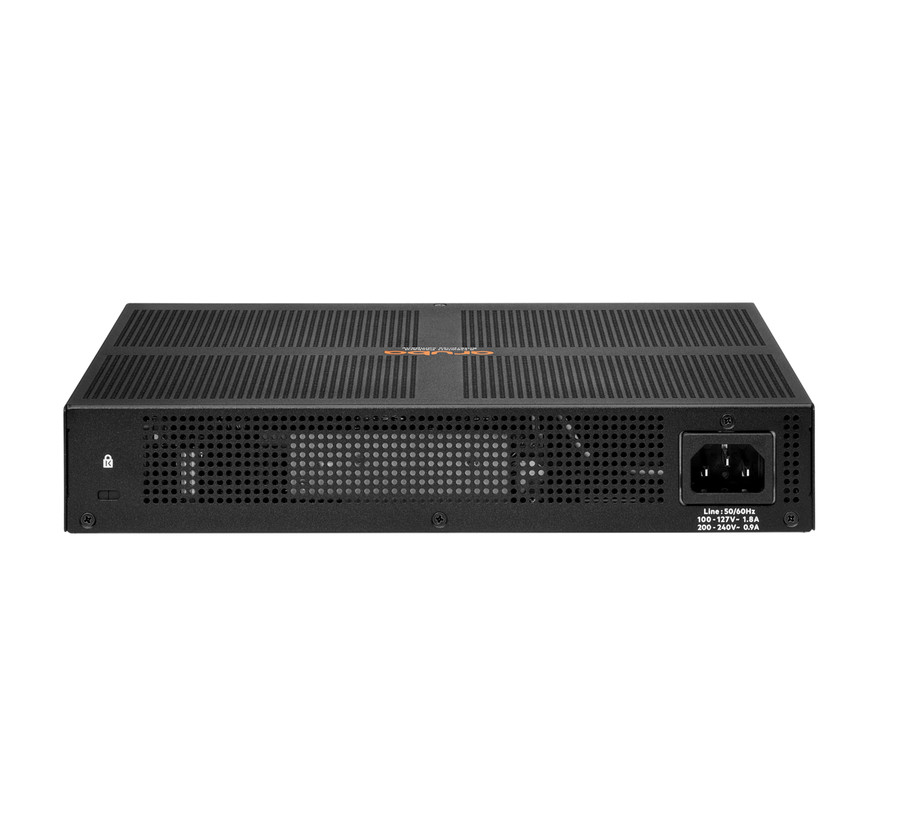

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry-level access switches ideal for branch offices, mid-market enterprises, and SMB networks. Designed for reliable, simple, and secure access, this switch family provides a convenient wired access solution for enterprise networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System to deliver a more consistent, more efficient operator experience. This Layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12-port model is ideal for use in quiet workspaces. With robust quality of service (QoS), support for static routing, and IPv6, these switches also simplify ownership with no switch software licensing requirements.
What is new supporting point:
The CX 6100 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry-standard CLI
It offers scalability with a 6-member switch virtual switching framework (VSF) stacking
It simplifies IT operations with next-gen Layer 2 switch series that provides entry-level, reliable, and convenient wired access connectivity
The CX 6100 series provides right size with 12, 24, and 48-port 1U models with convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE
It has compact and fan-less 12-port PoE model for space-constrained deployments
What is new supporting point:
The CX 6100 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry-standard CLI
It offers scalability with a 6-member switch virtual switching framework (VSF) stacking
It simplifies IT operations with next-gen Layer 2 switch series that provides entry-level, reliable, and convenient wired access connectivity
The CX 6100 series provides right size with 12, 24, and 48-port 1U models with convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE
It has compact and fan-less 12-port PoE model for space-constrained deployments
Key Features
- Managed L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 12 Console port: USB
- 10G support
- MAC address table: 8192 entries Switching capacity: 68 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC Power supply included Power over Ethernet (PoE)
Specifications
| Dimensions Weight | |
|---|---|
| Width | 44 mm |
| Weight | 2800 g |
| Battery | |
| Product colour | Black |
| Camera | |
| Built-in processor | Yes |
| Processor frequency | 1016 |
| Computer system | |
| Internal memory | 4096 |
| Processor model | Armcortex A9 |
| Data transmission | |
| Latency (1 Gbps) | 2 |
| Latency (10 Gbps) | 2 |
| Switching capacity | 68 |
| Design | |
| Form factor | 1U |
| Operating relative humidity (H-H) | 15 - 95 |
| Rack mounting | Yes |
| Storage relative humidity (H-H) | 15 - 90 |
| Features | |
| AC input voltage | 200 - 240 |
| Depth | 254 |
| Fan | Fixed fans |
| Flash memory | 16 |
| Harmonized System (HS) code | 85176990 |
| Height | 255 |
| I/O ports | 12 x 10/100/1000BASE-T ports 2 x 1G/10G SFP ports 2 x 1GbE ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port |
| Power over Ethernet (PoE) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| VLAN support | Yes |
| Network | |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | Gigabitethernet 10 100 1000 |
| Security | |
| DHCP features | DHCP client |
