Overview
The HPE Aruba Networking CX 8360 v2 Switch Series is designed for next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. The switch series provides up to 4.8 Tbps switching capacity, with line-rate Gigabit Ethernet interfaces including support for HPE Smart Rate (1/2.5/5 Gbps), 10 Gbps, 25 Gbps, 40 Gbps, 50 Gbps, and 100 Gbps connectivity in a compact 1U form factor. These switches deliver a fantastic investment for customers wanting to migrate from older 1/10GbE to faster 25GbE, or from 10/40GbE uplinks to 50/100GbE ports. In addition, the 48 and 32 x 25G port CX 8360 models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains. MACsec is also supported on 2 high-speed 40/100G ports on the CX 8360 48-port model.
What is new supporting point:
Intelligent monitoring and visibility are delivered by the HPE Aruba Networking CX Network Analytics Engine (NAE)
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6
The CX 8360 48 and 32 x 25G port models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains
High performance fully distributed architecture provides up to 4.8 Tbps switching and 1786 Mpps for forwarding
48-port 1/10/25G with 4 MACsec, 6-port of 40/100G with 2 MACsec (MACsec secured connectivity over untrusted domains)
High availability with industry-leading HPE Aruba Networking Virtual Switching Extension (VSX) redundancy and redundant power supplies and fans
What is new supporting point:
Intelligent monitoring and visibility are delivered by the HPE Aruba Networking CX Network Analytics Engine (NAE)
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6
The CX 8360 48 and 32 x 25G port models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains
High performance fully distributed architecture provides up to 4.8 Tbps switching and 1786 Mpps for forwarding
48-port 1/10/25G with 4 MACsec, 6-port of 40/100G with 2 MACsec (MACsec secured connectivity over untrusted domains)
High availability with industry-leading HPE Aruba Networking Virtual Switching Extension (VSX) redundancy and redundant power supplies and fans
Key Features
- Managed L3
- Quality of Service (QoS) support
- Console port: RJ-45/USB Type-C
- 10G support
- MAC address table: 212992 entries Switching capacity: 880 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC Power supply included
Specifications
| Dimensions Weight | |
|---|---|
| Width | 44 mm |
| Height | 406 mm |
| Depth | 44 mm |
| Weight | 8070 g |
| Camera | |
| Built-in processor | Yes |
| Processor frequency | 1800 |
| Computer system | |
| Internal memory | 16384 |
| Cooling | |
| Number of fans | 3 |
| Data transmission | |
| Switching capacity | 880 |
| Design | |
| Form factor | 1U |
| Operating relative humidity (H-H) | 15 - 95 |
| Rack mounting | Yes |
| Storage relative humidity (H-H) | 15 - 95 |
| Ethernet LAN features | |
| Ethernet LAN data rates | 1000 Mbit/s, 10000 Mbit/s, 40000 Mbit/s, 100000 |
| Features | |
| AC input voltage | 200 - 240 |
| Fan | 3 field-replaceable and hot-swappable fans |
| Fiber optic connector | Qsfp28, Qsfp , SFP+, Sfp |
| Flash memory | 32000 |

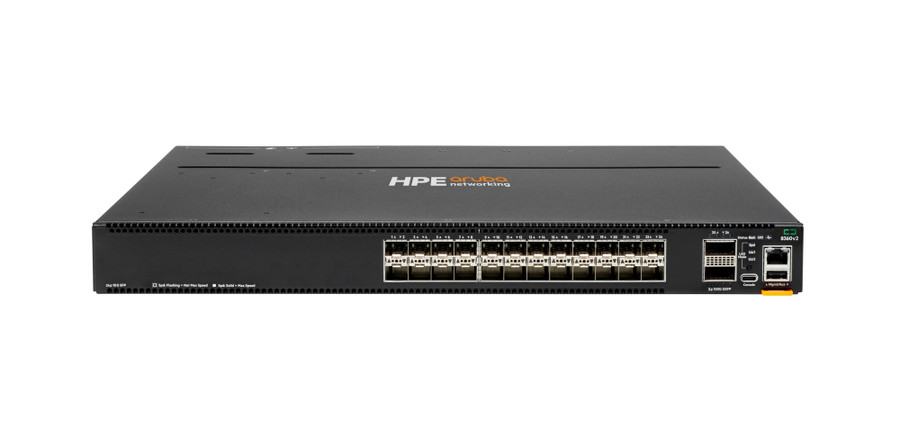

| I/O ports | 24-port of 1/10GbE (SFP/SFP+) 2-port of 40/100GbE (QSFP+/QSFP28) (optional 1GBASE-T SFP and 10GBASE-T SFP+ transceivers and 4 x 10/25G breakout cables supported) |
| IPv4 & IPv6 features | Ipv4 Ipv6access Controllist Acl |
| Power over Ethernet (PoE) | No |
| Quality of Service (QoS) support | Yes |
| Security algorithms | SNMPv2, SNMPv3 |
| Switch layer | L3 |
| Switch type | Managed |
| VLAN support | Yes |
| Network | |
| 10G support | Yes |
| Networking standards | IEEE 802.1ab, Ieee802 1ae, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1Q |
| Performance | |
| Routing protocols | BGP4+, Mpls, OSPF, RIP, RIP-2, RIPng |
| Security | |
| DHCP features | DHCP server |
| SSH/SSL support | Yes |
From the manufacturer
Rich content supplied by HPE via 1WorldSyncSpecifications
Performance
- Routing protocols
- Bgp4, Mpls, Ospf, Rip, Rip 2, Ripng
Camera
- Built-in processor
- Yes
- Processor frequency
- 1800 MHz
Data transmission
- Switching capacity
- 880
Network
- 10G support
- Yes
- Networking standards
- Ieee802 1ab, Ieee802 1ae, Ieee802 1ak, Ieee802 1ax, Ieee802 1q
Security
- DHCP features
- Dhcpserver
- SSH/SSL support
- Yes
Computer system
- Internal memory
- 16384 GB
Features
- Height
- 406 mm
- Depth
- 44 mm
- AC input voltage
- 200 - 240
- Fan
- 3 field-replaceable and hot-swappable fans
- Fiber optic connector
- Qsfp28, Qsfp , Sfp, Sfp
- Flash memory
- 32000
- I/O ports
- 24-port of 1/10GbE (SFP/SFP+) 2-port of 40/100GbE (QSFP+/QSFP28) (optional 1GBASE-T SFP and 10GBASE-T SFP+ transceivers and 4 x 10/25G breakout cables supported)
- IPv4 & IPv6 features
- Ipv4 Ipv6access Controllist Acl
- Power over Ethernet (PoE)
- No
- Quality of Service (QoS) support
- Yes
- Security algorithms
- Snmpv2, Snmpv3
- Switch layer
- L3
- Switch type
- Managed
- VLAN support
- Yes
Design
- Form factor
- 1U
- Operating relative humidity (H-H)
- 15 - 95
- Rack mounting
- Yes
- Storage relative humidity (H-H)
- 15 - 95
Dimensions Weight
- Width
- 44 mm
- Weight
- 8070 g
Cooling
- Number of fans
- 3
Ethernet LAN features
- Ethernet LAN data rates
- 1000, 10000, 40000, 100000
