Overview

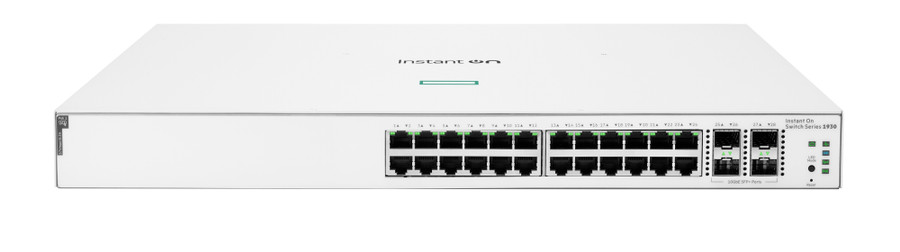

The HPE Networking Instant On Switch 1930 series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1 G SFP slots on 8-port model and 1 G/10 G SFP+ slots on 24-/48 G models for fiber connectivity.
What is new supporting point:
Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Option to manage your switches through local web GUI.
1 G/10 G SFP+ ports on 24-and 48-port models for fiber connectivity.
What is new supporting point:
Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Option to manage your switches through local web GUI.
1 G/10 G SFP+ ports on 24-and 48-port models for fiber connectivity.
Key Features
- Managed L2/L3/L4 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G support
- MAC address table: 16000 entries Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC Power supply included Power over Ethernet (PoE)
Specifications
| Dimensions Weight | |
|---|---|
| Width | 43 mm |
| Height | 264 mm |
| Depth | 442 mm |
| Weight | 3490 g |
| Battery | |
| Product colour | White |
| Call management | |
| Web-based management | Yes |
| Camera | |
| Built-in processor | Yes |
| Processor frequency | 800 |
| Computer system | |
| Internal memory | 512 |
| Processor model | ARM Cortex-A9 |
| Data transmission | |
| Latency (1 Gbps) | 2 |
| Latency (10 Gbps) | 1 |
| Latency (10-100 Mbps) | 4 |
| Switching capacity | 128 |
| Design | |
| Form factor | 1U |
| Operating relative humidity (H-H) | 15 - 95 |
| Rack mounting | Yes |
| Storage relative humidity (H-H) | 15 - 95 |
| Features | |
| AC input voltage | 200 - 240 |
| Flash memory | 256 |
| I/O ports | 24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASETX: half or full; 1000 BASE-T: full only 4 SFP+ 1/10 GbE ports |
| Power over Ethernet (PoE) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3/L4 |
| Switch type | Managed |
| VLAN support | Yes |
| Network | |
| 10G support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabitethernet 10 100 1000 |
| Security | |
| DHCP features | DHCP client |
| SSH/SSL support | Yes |
From the manufacturer
Rich content supplied by HPE via 1WorldSyncSpecifications
Camera
- Built-in processor
- Yes
- Processor frequency
- 800 MHz
Data transmission
- Latency (1 Gbps)
- 2
- Latency (10 Gbps)
- 1
- Latency (10-100 Mbps)
- 4
- Switching capacity
- 128
Network
- 10G support
- Yes
- Networking standards
- Ieee802 3, Ieee802 3ab, Ieee802 3u
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabitethernet 10 100 1000
Security
- DHCP features
- Dhcpclient
- SSH/SSL support
- Yes
Computer system
- Internal memory
- 512 GB
- Processor model
- Armcortex A9
Features
- Height
- 264 mm
- Depth
- 442 mm
- AC input voltage
- 200 - 240
- Flash memory
- 256
- I/O ports
- 24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASETX: half or full; 1000 BASE-T: full only 4 SFP+ 1/10 GbE ports
- Power over Ethernet (PoE)
- Yes
- Quality of Service (QoS) support
- Yes
- Switch layer
- L2 L3 L4
- Switch type
- Managed
- VLAN support
- Yes
Design
- Product colour
- White
- Form factor
- 1U
- Operating relative humidity (H-H)
- 15 - 95
- Rack mounting
- Yes
- Storage relative humidity (H-H)
- 15 - 95
Dimensions Weight
- Width
- 43 mm
- Weight
- 3490 g
Call management
- Web-based management
- Yes
