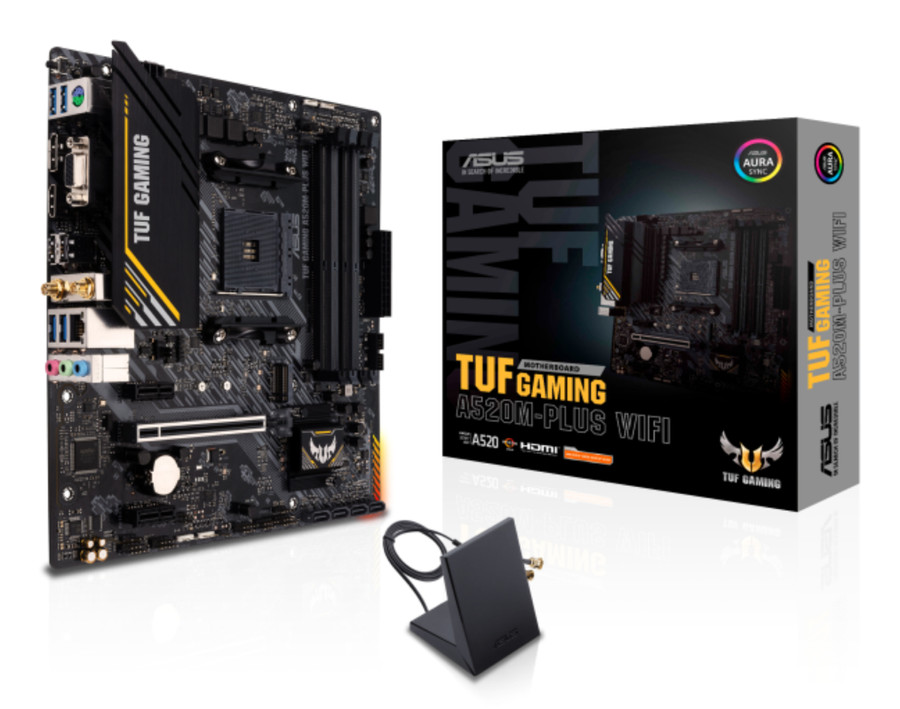

ASUS TUF GAMING A520M-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A
Key Features
- AMD Socket AM4 AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
- PC micro ATX AMD A520 Realtek ALC887 / Realtek ALC897 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, PCI Express 3.0, SATA III RAID support Number of storage drives supported: 5
- BIOS type: UEFI AMI 128 Mbit Clear CMOS jumper
- Gigabit Ethernet Wi-Fi Wi-Fi 5 (802.11ac) Bluetooth 5.0
Specifications
| Dimensions Weight | |
|---|---|
| Width | 244 mm |
| Weight | 900 g |
| Audio | |
| Audio chip | Realtek ALC887 / Realtek ALC897 |
| Camera | |
| Maximum resolution | 3840 x 2160 |
| Windows operating systems supported | Windows 10 x64 |
| Computer case | |
| USB 2.0 ports quantity | 2 |
| Computer system | |
| Maximum internal memory | 128 |
| Processor manufacturer | AMD |
| Cooling | |
| Supported processor sockets | Socket AM4 |
| Data transmission | |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Design | |
| Component for | PC |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of storage drives supported | 5 |
| Docking station | |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Features | |
| Cables included | SATA |
| Depth | 244 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Harmonized System (HS) code | 84733020 |
| Height | 67 |
| Motherboard chipset | AMD A520 |
| Processor socket | Socket AM4 |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| S/PDIF out connector | Yes |
| Supported memory types | DDR4-SDRAM |
| Supported storage drive types | HDD & SSD |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Internal I/O | |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| Memory | |
| Memory slots type | DIMM |
| Network | |
| WLAN controller model | Realtek RTL8821CE |
