Overview

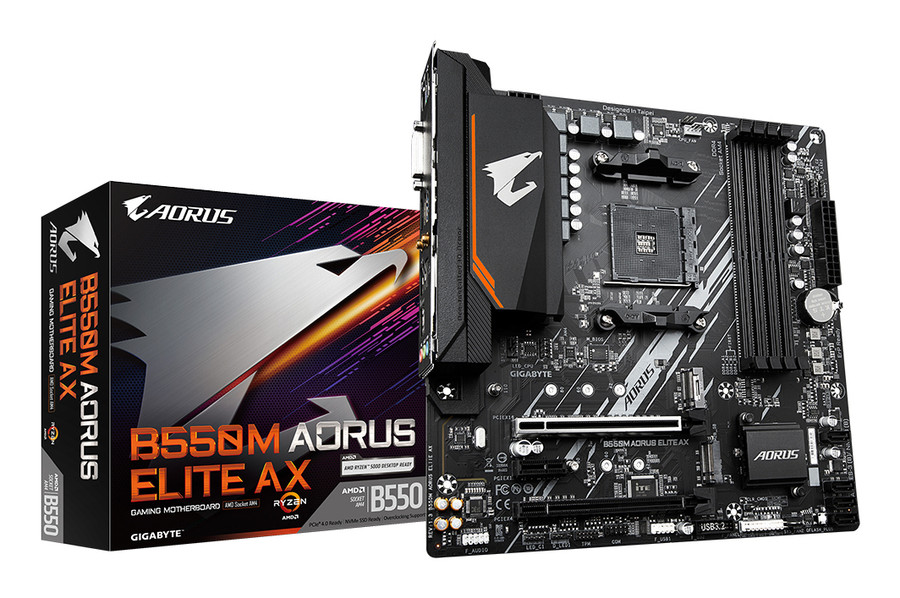

GIGABYTE B550M AORUS ELITE AX Motherboard. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Key Features
- AMD Socket AM4 AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
- PC micro ATX AMD B550 Realtek ALC897 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
- Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Specifications
| Dimensions Weight | |
|---|---|
| Width | 244 mm |
| Height | 35 mm |
| Depth | 244 mm |
| Memory Ram | |
| Memory channels | Dual-channel |
| Audio | |
| Audio chip | Realtek ALC897 |
| Battery | |
| Batteries included | Yes |
| Battery capacity | 220 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 |
| Number of battery cells | 1 |
| Product colour | Brown |
| Camera | |
| Maximum resolution | 4096 x 2160 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Computer case | |
| USB 2.0 ports quantity | 4 |
| Computer system | |
| Cooling type | Passive |
| Maximum internal memory | 128 |
| Processor manufacturer | AMD |
| Cooling | |
| Supported processor sockets | Socket AM4 |
| Data transmission | |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Design | |
| Component for | PC |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of storage drives supported | 6 |
| Docking station | |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Expansion slots | |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Features | |
| Antenna included | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Motherboard chipset | AMD B550 |
| Number of HDDs supported | 4 |
| Package depth | 265 |
| Package height | 65 |
| Package weight | 1273 |
| Package width | 265 |
| Power source type | ATX |
| Processor socket | Socket AM4 |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Supported memory types | DDR4-SDRAM |
| Supported storage drive types | HDD & SSD |
| Warranty period | 3 |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Internal I/O | |
| 12V power connector | Yes |
| Front panel connector | Yes |
| Number of CPU fan connectors | 1 |
| Memory | |
| Memory slots type | DIMM |
| Network | |
| WLAN controller model | Realtek RTL8852CE |
From the manufacturer
Rich content supplied by Gigabyte via 1WorldSyncSpecifications
Memory
- Memory slots type
- Dimm
Memory Ram
- Memory channels
- Dual-channel
Battery
- Batteries included
- Yes
- Battery capacity
- 220 mAh
- Battery technology
- Lithium Manganesedioxide Limno2
- Battery type
- CR2032
- Battery weight
- 3
- Number of battery cells
- 1
Camera
- Maximum resolution
- 4096 x 2160
- Windows operating systems supported
- Windows10x64, Windows11x64
Audio
- Audio chip
- Realtekalc897
Data transmission
- Bluetooth
- Yes
- Bluetooth version
- 5 3
Network
- WLAN controller model
- Realtekrtl8852ce
Docking station
- HDMI ports quantity
- 1
- HDMI version
- 2 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
Computer system
- Cooling type
- Passive
- Maximum internal memory
- 128 GB
- Processor manufacturer
- AMD
Features
- Height
- 35 mm
- Depth
- 244 mm
- Antenna included
- Yes
- Ethernet interface type
- Gigabitethernet
- Motherboard chipset
- AMD B550
- Number of HDDs supported
- 4
- Package depth
- 265
- Package height
- 65
- Package weight
- 1273
- Package width
- 265
- Power source type
- Atx
- Processor socket
- Socketam4
- RAID levels
- 0, 1, 10
- RAID support
- Yes
- Supported memory types
- Ddr4 Sdram
- Supported storage drive types
- Hdd Ssd
- Warranty period
- 3
- Wi-Fi
- Yes
- Wi-Fi standards
- Wi Fi6e 802 11ax
Design
- Product colour
- Brown
- Component for
- PC
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Number of storage drives supported
- 6
Dimensions Weight
- Width
- 244 mm
Computer case
- USB 2.0 ports quantity
- 4
Cooling
- Supported processor sockets
- Socketam4
Expansion slots
- 1st M.2 highest PCI Express generation
- 4 0
- 1st M.2 largest key size
- 22110
- Number of M.2 (M) slots
- 2
- PCI Express x1 (Gen 3.x) slots
- 1
Internal I/O
- 12V power connector
- Yes
- Front panel connector
- Yes
- Number of CPU fan connectors
- 1
