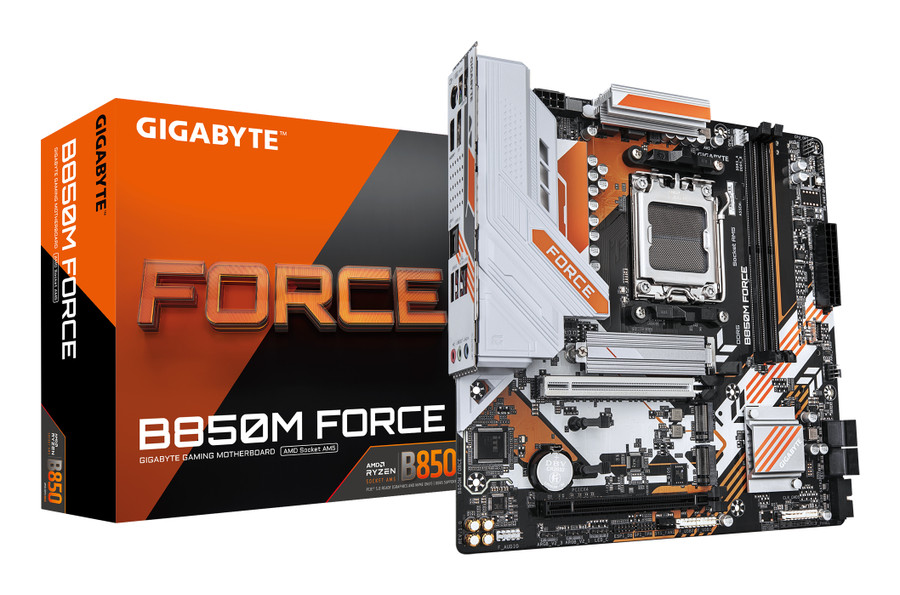

GIGABYTE B850M FORCE Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 9600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
Key Features
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC micro ATX AMD B850 Realtek ALC897 7.1 channels
- DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, PCI Express 4.0, PCI Express 5.0, SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
- 2.5 Gigabit Ethernet
Specifications
| Dimensions Weight | |
|---|---|
| Width | 244 mm |
| Weight | 1180 g |
| Audio | |
| Audio chip | Realtek ALC897 |
| Battery | |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 |
| Number of battery cells | 1 |
| Product colour | Dark brown |
| Camera | |
| Maximum resolution | 4096 x 2160 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Computer case | |
| USB 2.0 ports quantity | 2 |
| Computer system | |
| Cooling type | Passive |
| Maximum internal memory | 128 |
| Processor manufacturer | AMD |
| Cooling | |
| Supported processor sockets | Socket AM5 |
| Design | |
| Component for | PC |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of storage drives supported | 7 |
| Docking station | |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Expansion slots | |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Features | |
| Depth | 244 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Height | 35 |
| Motherboard chipset | AMD B850 |
| Number of HDDs supported | 4 |
| Package depth | 268 |
| Package height | 68 |
| Package weight | 1400 |
| Package width | 270 |
| Power source type | ATX |
| Processor socket | Socket AM5 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive types | HDD & SSD |
| Warranty period | 3 |
| Wi-Fi | No |
| Internal I/O | |
| 12V power connector | Yes |
| Front panel connector | Yes |
| Number of CPU fan connectors | 2 |
| Memory | |
| Memory slots type | DIMM |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
