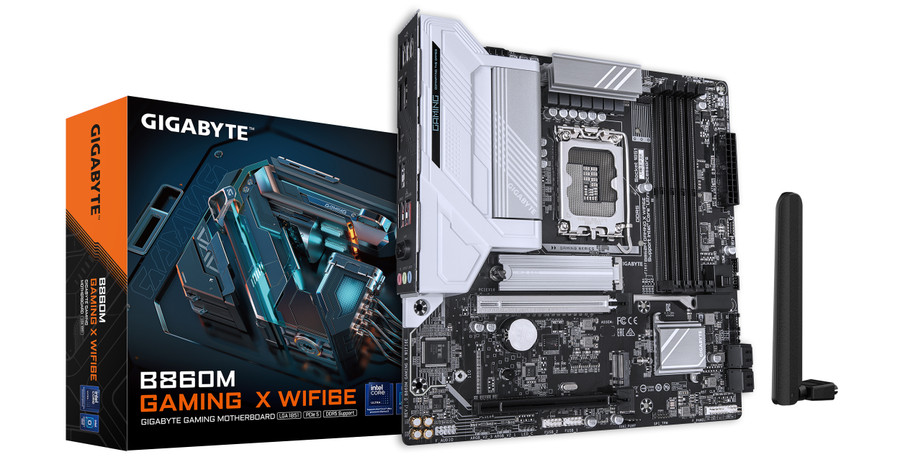

GIGABYTE B860M GAMING X WIFI6E Motherboard
Add to wish list
Gigabyte SKU: B860M GAMING X WIFI6E

GIGABYTE B860M GAMING X WIFI6E Motherboard

Read reviews
£130.79 ex VAT
£156.95 inc VAT
in stock

Adding to cart… The item has been added
Add to wish list

In stock ships from Canterbury, Kent

Buying in volume?Get a trade quote for larger orders

Email us Trade enquiry form
  • Free & easy returnsUnused, in original packaging
  • Price Match PromiseSeen it cheaper? Tell us
  • VAT invoiceIncluded with every order

Overview

GIGABYTE B860M GAMING X WIFI6E Motherboard. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Key Features

  • Intel LGA 1851 (Socket V1) Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
  • PC micro ATX Intel B860 Realtek ALC897 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3

Specifications

Dimensions Weight
Width244 mm
Height35 mm
Depth244 mm
Weight1225 g
Memory Ram
Memory channelsDual-channel
Audio
Audio chipRealtek ALC897
Battery
Batteries includedYes
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Battery weight3
Number of battery cells1
Product colourDark brown
Camera
Maximum resolution4096 x 2160
Windows operating systems supportedWindows 11 x64
Computer case
USB 2.0 ports quantity5
Computer system
Cooling typePassive
Maximum internal memory256
Processor manufacturerIntel
Cooling
Supported processor socketsLGA 1851
Data transmission
BluetoothYes
Bluetooth version5.3
Design
Component forPC
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Number of storage drives supported6
Docking station
HDMI ports quantity1
HDMI version2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Expansion slots
1st M.2 highest PCI Express generation5.0
1st M.2 largest key size2280
Number of M.2 (M) slots2
PCI Express x16 (Gen 5.x) slots1
Features
Antenna includedYes
DisplayPort version2.1
DisplayPorts quantity1
Ethernet interface type2.5 Gigabit Ethernet
Motherboard chipsetIntel B860
Number of HDDs supported4
Package depth268
Package height68
Package weight1427.5
Package width270
Power source typeATX
Processor socketLGA 1851 (Socket V1)
RAID levels0, 1, 5, 10
RAID supportYes
Supported memory typesDDR5-SDRAM
Supported storage drive typesHDD & SSD
Warranty period3
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Internal I/O
Front panel connectorYes
Number of CPU fan connectors2
Thunderbolt headers2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Memory
Memory slots typeDIMM
Network
WLAN controller modelIntel Wi-Fi 6E AX211
Ports & interfaces
USB4 Gen 2x2 ports quantity1

Specifications

Memory

Memory slots type
Dimm

Memory Ram

Memory channels
Dual-channel

Battery

Batteries included
Yes
Battery technology
Lithium Manganesedioxide Limno2
Battery type
CR2032
Battery weight
3
Number of battery cells
1

Camera

Maximum resolution
4096 x 2160
Windows operating systems supported
Windows11x64

Audio

Audio chip
Realtekalc897

Data transmission

Bluetooth
Yes
Bluetooth version
5 3

Network

WLAN controller model
Intelwi Fi6eax211

Ports & interfaces

USB4 Gen 2x2 ports quantity
1

Docking station

HDMI ports quantity
1
HDMI version
2 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

Computer system

Cooling type
Passive
Maximum internal memory
256 GB
Processor manufacturer
Intel

Features

Height
35 mm
Depth
244 mm
Antenna included
Yes
DisplayPort version
2 1
DisplayPorts quantity
1
Ethernet interface type
2 5gigabitethernet
Motherboard chipset
Intel B860
Number of HDDs supported
4
Package depth
268
Package height
68
Package weight
1427.5
Package width
270
Power source type
Atx
Processor socket
Lga1851 Socketv1
RAID levels
0, 1, 5, 10
RAID support
Yes
Supported memory types
Ddr5 Sdram
Supported storage drive types
Hdd Ssd
Warranty period
3
Wi-Fi
Yes
Wi-Fi standards
802 11a, 802 11b, 802 11g, Wi Fi4 802 11n, Wi Fi5 802 11ac, Wi Fi6 802 11ax, Wi Fi6e 802 11ax

Design

Product colour
Darkbrown
Component for
PC
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Number of storage drives supported
6

Dimensions Weight

Width
244 mm
Weight
1225 g

Computer case

USB 2.0 ports quantity
5

Cooling

Supported processor sockets
Lga1851

Expansion slots

1st M.2 highest PCI Express generation
5 0
1st M.2 largest key size
2280
Number of M.2 (M) slots
2
PCI Express x16 (Gen 5.x) slots
1

Internal I/O

Front panel connector
Yes
Number of CPU fan connectors
2
Thunderbolt headers
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
