Overview

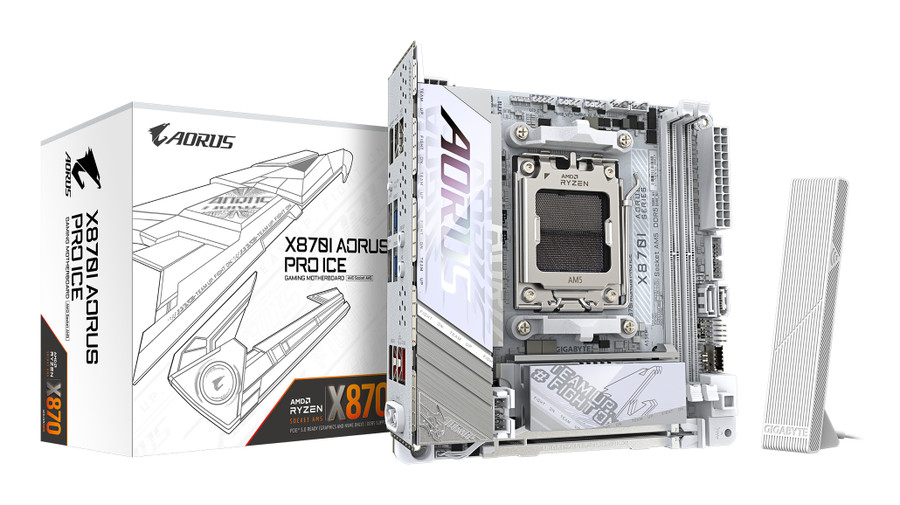

GIGABYTE X870I AORUS PRO ICE Motherboard - Supports AMD Ryzen 9000 Series CPUs, 8+2+1 phases VRM, up to 8400MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 1xPCIe 4.0 M.2, WI-FI 7, 2,5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Key Features
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC Micro ITX AMD X870 Realtek ALC4080 7.1 channels
- DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 4
- BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Specifications
| Dimensions Weight | |
|---|---|
| Width | 170 mm |
| Height | 35 mm |
| Depth | 170 mm |
| Weight | 1200 g |
| Memory Ram | |
| Memory channels | Dual-channel |
| Audio | |
| Audio chip | Realtek ALC4080 |
| Battery | |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 |
| Number of battery cells | 1 |
| Product colour | White |
| Camera | |
| Maximum resolution | 4096 x 2160 |
| Windows operating systems supported | Windows 11 x64 |
| Computer case | |
| USB 2.0 ports quantity | 2 |
| Computer system | |
| Maximum internal memory | 128 |
| Processor manufacturer | AMD |
| Cooling | |
| Supported processor sockets | Socket AM5 |
| Data transmission | |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Design | |
| Component for | PC |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of storage drives supported | 4 |
| Docking station | |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Expansion slots | |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Features | |
| Antenna included | Yes |
| DisplayPort version | 1.4 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard chipset | AMD X870 |
| Number of HDDs supported | 2 |
| Package depth | 227 |
| Package height | 95 |
| Package weight | 1280 |
| Package width | 235 |
| Power source type | ATX |
| Processor socket | Socket AM5 |
| RAID levels | 0, 1 |
| RAID support | Yes |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive types | HDD & SSD |
| Warranty period | 3 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Internal I/O | |
| Front panel connector | Yes |
| Number of CPU fan connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Memory | |
| Memory slots type | DIMM |
| Network | |
| WLAN controller model | Realtek RTL8922AE |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 1 |
From the manufacturer
Rich content supplied by Gigabyte via 1WorldSyncSpecifications
Memory
- Memory slots type
- Dimm
Memory Ram
- Memory channels
- Dual-channel
Battery
- Batteries included
- Yes
- Battery technology
- Lithium Manganesedioxide Limno2
- Battery type
- CR2032
- Battery weight
- 3
- Number of battery cells
- 1
Camera
- Maximum resolution
- 4096 x 2160
- Windows operating systems supported
- Windows11x64
Audio
- Audio chip
- Realtekalc4080
Data transmission
- Bluetooth
- Yes
- Bluetooth version
- 5 4
Network
- WLAN controller model
- Realtekrtl8922ae
Ports & interfaces
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB4 Gen 2x2 ports quantity
- 1
Docking station
- HDMI ports quantity
- 1
- HDMI version
- 2 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
Computer system
- Maximum internal memory
- 128 GB
- Processor manufacturer
- AMD
Features
- Height
- 35 mm
- Depth
- 170 mm
- Antenna included
- Yes
- DisplayPort version
- 1 4
- Ethernet interface type
- 2 5gigabitethernet
- Motherboard chipset
- AMD X870
- Number of HDDs supported
- 2
- Package depth
- 227
- Package height
- 95
- Package weight
- 1280
- Package width
- 235
- Power source type
- Atx
- Processor socket
- Socketam5
- RAID levels
- 0, 1
- RAID support
- Yes
- Supported memory types
- Ddr5 Sdram
- Supported storage drive types
- Hdd Ssd
- Warranty period
- 3
- Wi-Fi
- Yes
- Wi-Fi standards
- 802 11a, 802 11b, 802 11g, Wi Fi4 802 11n, Wi Fi5 802 11ac, Wi Fi6 802 11ax, Wi Fi6e 802 11ax, Wi Fi7 802 11be
Design
- Product colour
- White
- Component for
- PC
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Number of storage drives supported
- 4
Dimensions Weight
- Width
- 170 mm
- Weight
- 1200 g
Computer case
- USB 2.0 ports quantity
- 2
Cooling
- Supported processor sockets
- Socketam5
Expansion slots
- 1st M.2 highest PCI Express generation
- 5 0
- 1st M.2 largest key size
- 2280
- Number of M.2 (M) slots
- 2
- PCI Express x16 (Gen 5.x) slots
- 1
Internal I/O
- Front panel connector
- Yes
- Number of CPU fan connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
