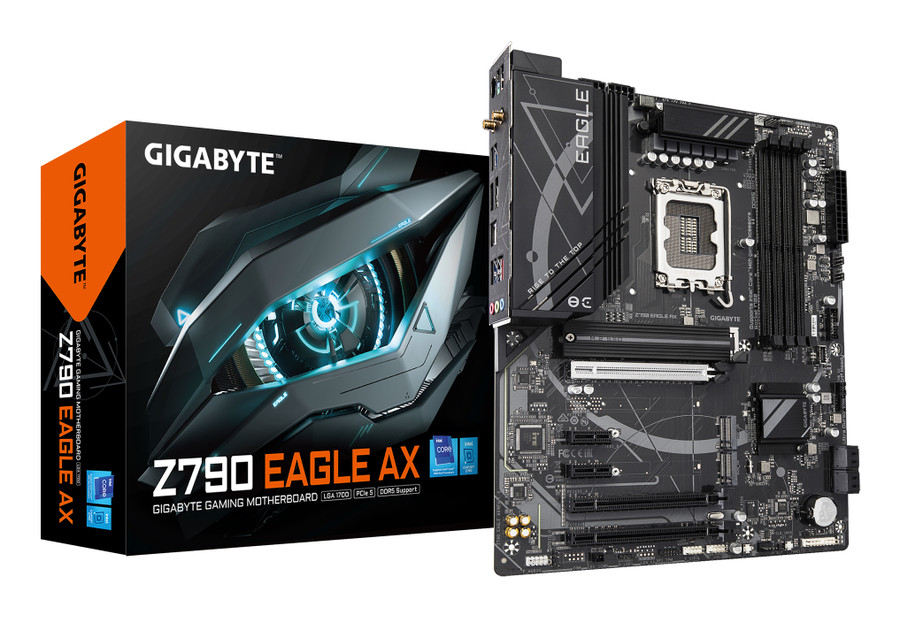

GIGABYTE Z790 EAGLE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+１Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
Key Features
- Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- PC ATX Intel Z790 Express Realtek ALC897 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Specifications
| Dimensions Weight | |
|---|---|
| Width | 305 mm |
| Audio | |
| Audio chip | Realtek ALC897 |
| Battery | |
| Batteries included | Yes |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 |
| Number of battery cells | 1 |
| Product colour | Brown |
| Camera | |
| Maximum resolution | 4096 x 2304 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Computer case | |
| USB 2.0 ports quantity | 2 |
| Computer system | |
| Maximum internal memory | 192 |
| Processor manufacturer | Intel |
| Cooling | |
| Supported processor sockets | LGA 1700 |
| Data transmission | |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Design | |
| Component for | PC |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of storage drives supported | 7 |
| Docking station | |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Features | |
| Antenna included | Yes |
| Cables included | SATA |
| Depth | 244 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Height | 35 |
| Motherboard chipset | Intel Z790 Express |
| Number of HDDs supported | 4 |
| On-board graphics card | No |
| Package depth | 270 |
| Package height | 80 |
| Package weight | 1807.5 |
| Package width | 335 |
| Power source type | ATX |
| Processor socket | LGA 1700 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive types | HDD & SSD |
| USB connector type | USB Type-A, USB Type-C |
| Warranty period | 3 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Internal I/O | |
| 12V power connector | Yes |
| Front panel connector | Yes |
| Thunderbolt headers | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Memory | |
| Memory slots type | DIMM |
| Network | |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
