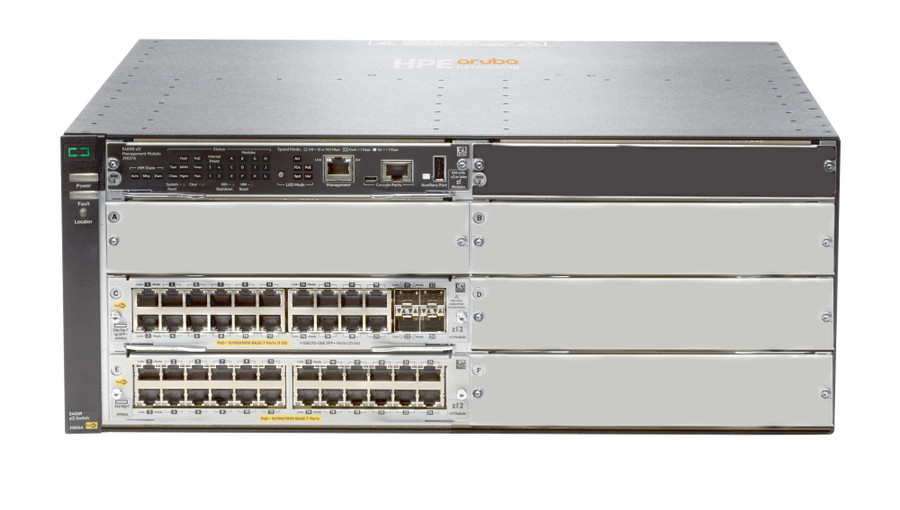

HPE Aruba Networking 5406R 44GT PoE+ and 4 port SFP+ (No PSU) v3 zl2 Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 44. Full duplex. MAC address table: 64000 entries, Switching capacity: 960 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 4U
Key Features
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 44
- 10G support
- MAC address table: 64000 entries Switching capacity: 960 Gbit/s
- Access Control List (ACL)
- 4U Rack mounting Stackable
- Power over Ethernet (PoE)
Specifications
| Dimensions Weight | |
|---|---|
| Width | 444.5 mm |
| Height | 175.3 mm |
| Depth | 450.9 mm |
| Weight | 12750 g |
| Battery | |
| Product colour | Grey |
| Call management | |
| Web-based management | Yes |
| Camera | |
| Built-in processor | Yes |
| Processor frequency | 1200 |
| Computer system | |
| Internal memory | 4096 |
| Cooling | |
| Noise level | 44 |
| Data transmission | |
| Latency (1 Gbps) | 2 |
| Latency (10 Gbps) | 1 |
| Switching capacity | 960 |
| Design | |
| Compatible memory cards | SD |
| Form factor | 4U |
| Operating relative humidity (H-H) | 15 - 95 |
| Operating temperature (T-T) | 0 - 45 |
| Rack mounting | Yes |
| Storage relative humidity (H-H) | 15 - 95 |
| Storage temperature (T-T) | -40 - 70 |
| Features | |
| AC input voltage | 200 - 240 |
| Flash memory | 16 |
| Harmonized System (HS) code | 85176990 |
| I/O ports | 44 RJ‐45 auto‐sensing 10/100/1000 PoE+ ports 4 open 10 GbE SFP+ transceiver 4 open module slots Supports a maximum of 144 auto‐sensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi‐Gigabit or 12 40 GbE ports, or a combinat |
| Power over Ethernet (PoE) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| VLAN support | Yes |
| Network | |
| 10G support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 44 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Security | |
| SSH/SSL support | Yes |
