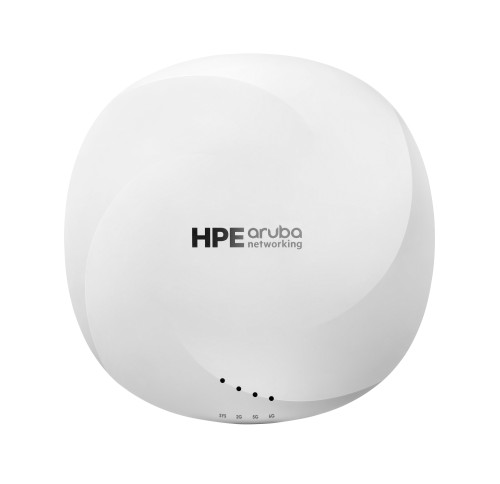

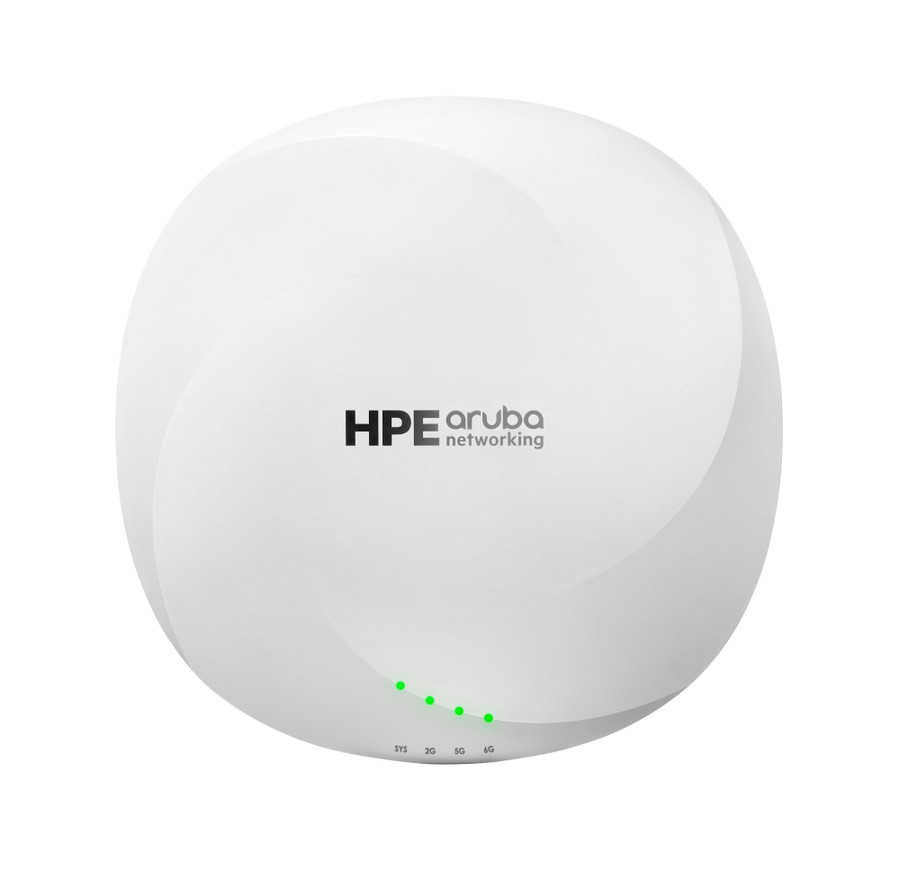

HPE Aruba Networking AP-635 (RW) Tri Radio 2x2 Wi-Fi 6E Internal Antennas 5-pack Campus Access Point. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 2400 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 2500,5000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Key Features
- 2.4 GHz
- 5 GHz
- 6 GHz
- Maximum data transfer rate: 2400 Mbit/s
- IEEE 802.11ax, IEEE 802.11mc
- WPA, WPA2, WPA3
- Power over Ethernet (PoE)
- Internal Integrated antenna
Specifications
| Dimensions Weight | |
|---|---|
| Width | 220 mm |
| Height | 220 mm |
| Depth | 50 mm |
| Weight | 1300 g |
| Antenna | |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antenna type | Internal |
| Battery | |
| Product colour | White |
| Camera | |
| GPS (satellite) | Yes |
| Certificates | |
| Compliance certificates | CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), ISED, Low Voltage Directive (LVD) |
| Computer case | |
| USB 2.0 ports quantity | 1 |
| Data transmission | |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Maximum data transfer rate | 2400 |
| Design | |
| Ethernet LAN (RJ-45) ports | 2 |
| Mounting | The AP-635 built-in antennas are optimized for horizontal orientation of the AP, mounted at a typical ceiling height. |
| Operating relative humidity (H-H) | 5 - 95 |
| Operating temperature (T-T) | 0 - 50 |
| Recommended usage | Indoor |
| Storage relative humidity (H-H) | 10 - 100 |
| Storage temperature (T-T) | -40 - 70 |
| Ethernet LAN features | |
| Ethernet LAN data rates | 2500, 5000 Mbit/s |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Compatible operating systems | AP-634 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-634 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.03 AP-635: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.9.0.0, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-634 is only supported on HPE Aruba Networking OS 10.7.0.0 and later deployments and HPE Aruba Networking OS 8.12.0.0 and later deployments that include a HPE Aruba Networking Mobility Conductor. Standard power operation is not supported on Instant OS deployments or 8.x HPE Aruba Networking OS deployments without a HPE Aruba Networking Mobility Conductor. |
| Depth | 50 |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.9 Gbps |
| Height | 220 |
| I/O ports | E0, E1: Two Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| MIMO | Yes |
| Modulation | 1024-QAM, 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, QPSK |
| Power over Ethernet (PoE) | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| Network | |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
