Overview

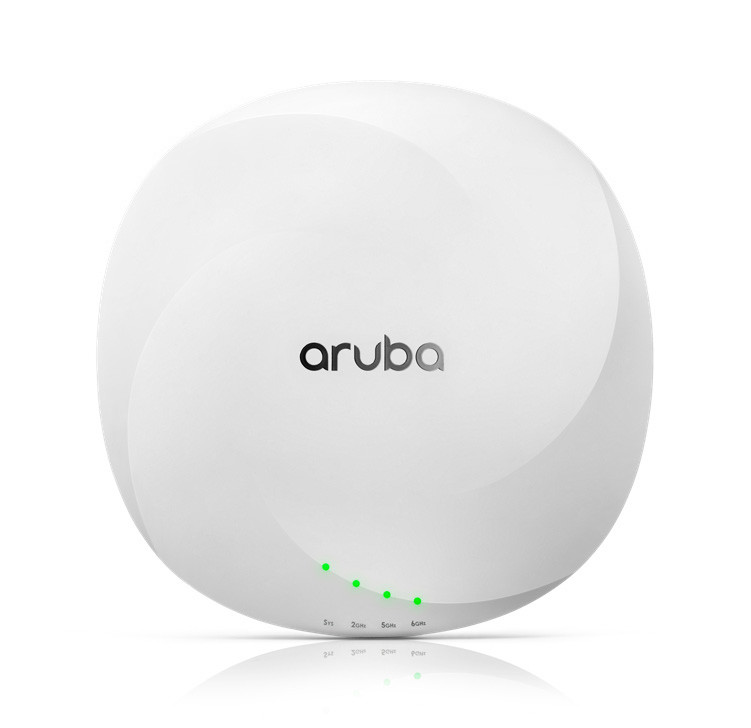

The HPE Aruba Networking 650 Series Campus Access Points are our flagship Wi-Fi 6E access points (APs) that take advantage of the 6 GHz band for greater capacity, wider channels, and interference-free spectrum. Designed to meet the demands of bandwidth-hungry video, a growing numbers of client and Internet of Things (IoT) devices, and the growth of cloud services, these high-performance Wi-Fi 6E APs provide comprehensive tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate. The 650 series includes ultra tri-band (UTB) filtering to help minimize channel interference and dual configurable 5 Gbps Ethernet ports to mitigate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. Up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and AR/VR applications. The 650 series includes a limited lifetime warranty.
What is new supporting point:
Patented UTB filtering enhances the use of 5 GHz and 6 GHz bands
IoT-ready with support for Bluetooth Low Energy (BLE) and Zigbee
Built-in GPS receivers and intelligent software enable APs to self-locate and act as reference points for more accurate indoor location measurements
Flagship Wi-Fi 6E APs provide tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate
4x4 MIMO radios to deliver peak performance and increased capacity using multi-user (MU-MIMO) and orthogonal frequency-division multiple access (OFDMA) (uplink and downlink for both)
High availability with dual 5 Gbps wired ports for redundant Ethernet and power
What is new supporting point:
Patented UTB filtering enhances the use of 5 GHz and 6 GHz bands
IoT-ready with support for Bluetooth Low Energy (BLE) and Zigbee
Built-in GPS receivers and intelligent software enable APs to self-locate and act as reference points for more accurate indoor location measurements
Flagship Wi-Fi 6E APs provide tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate
4x4 MIMO radios to deliver peak performance and increased capacity using multi-user (MU-MIMO) and orthogonal frequency-division multiple access (OFDMA) (uplink and downlink for both)
High availability with dual 5 Gbps wired ports for redundant Ethernet and power
Key Features
- 2.4 GHz 574 Mbit/s
- 5 GHz 2400 Mbit/s
- 6 GHz 4800 Mbit/s
- Maximum data transfer rate: 4800 Mbit/s
- IEEE 802.11ax, IEEE 802.11mc
- WPA, WPA2, WPA3
- Power over Ethernet (PoE)
- Internal
Specifications
| Dimensions Weight | |
|---|---|
| Width | 260 mm |
| Height | 260 mm |
| Depth | 56 mm |
| Weight | 1800 g |
| Antenna | |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| Channels quantity | 3 |
| Battery | |
| Product colour | White |
| Certificates | |
| Compliance certificates | CE, Federalcommunicationscommission Fcc, ISED, Lowvoltagedirective Lvd |
| Data transmission | |
| Bandwidth | 160 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Maximum data transfer rate | 4800 |
| Design | |
| Ethernet LAN (RJ-45) ports | 2 |
| LED indicators | Status, System |
| Operating relative humidity (H-H) | 5 - 95 |
| Quantity per pack | 1 |
| Recommended usage | Indoor |
| Storage relative humidity (H-H) | 10 - 100 |
| Ethernet LAN features | |
| Ethernet LAN data rates | 5000 |
| Features | |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Compatible operating systems | AP-654 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-654 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.01 AP-655: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.10.0.1, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-654 is only supported on HPE Aruba Networking Wireless Operating System software release 10.7.0.0 and later deployments and HPE Aruba Networking Wireless Operating System software release 8.12.0.0 and later deployments that include a HPE Aruba Networking Virtual Mobility Conductor. SP operation is not supported on Instant OS deployments or 8.x OS deployments without a HPE Aruba Networking Virtual Mobility Conductor. |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 7.8 Gbps |
| I/O ports | Ports E0, E1: Ethernet wired network ports (RJ-45) U0: USB 2.0 host interface (Type A connector) Kensington security slot Serial console interface (proprietary, micro B USB physical jack) |
| Maximum data transfer rate (5 GHz) | 2400 |
| Maximum data transfer rate (6 GHz) | 4800 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Package depth | 285 |
| Package height | 95 |
| Package weight | 2300 |
| Package width | 285 |
| Power over Ethernet (PoE) | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| Trusted Platform Module (TPM) | Yes |
| USB connector type | USB Type-A |
| VLAN support | Yes |
| Network | |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
From the manufacturer
Rich content supplied by HPE via 1WorldSyncSpecifications
Data transmission
- Bandwidth
- 160
- Bluetooth
- Yes
- Bluetooth version
- 5 0
- Maximum data transfer rate
- 4800
Network
- Networking standards
- Ieee802 11ax, Ieee802 11mc
Antenna
- Antenna direction type
- Omni Directional
- Antenna type
- Internal
- Channels quantity
- 3
Features
- Height
- 260 mm
- Depth
- 56 mm
- 5 GHz
- Yes
- 6 GHz
- Yes
- Compatible operating systems
- AP-654 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-654 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.01 AP-655: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.10.0.1, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-654 is only supported on HPE Aruba Networking Wireless Operating System software release 10.7.0.0 and later deployments and HPE Aruba Networking Wireless Operating System software release 8.12.0.0 and later deployments that include a HPE Aruba Networking Virtual Mobility Conductor. SP operation is not supported on Instant OS deployments or 8.x OS deployments without a HPE Aruba Networking Virtual Mobility Conductor.
- Frequency band
- 20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 7.8 Gbps
- I/O ports
- Ports E0, E1: Ethernet wired network ports (RJ-45) U0: USB 2.0 host interface (Type A connector) Kensington security slot Serial console interface (proprietary, micro B USB physical jack)
- Maximum data transfer rate (5 GHz)
- 2400
- Maximum data transfer rate (6 GHz)
- 4800
- MIMO
- Yes
- MIMO type
- Multiusermimo
- Package depth
- 285
- Package height
- 95
- Package weight
- 2300
- Package width
- 285
- Power over Ethernet (PoE)
- Yes
- Security algorithms
- Wpa, Wpa2, Wpa3
- Trusted Platform Module (TPM)
- Yes
- USB connector type
- Usbtype A
- VLAN support
- Yes
Design
- Product colour
- White
- Ethernet LAN (RJ-45) ports
- 2
- LED indicators
- Status, System
- Operating relative humidity (H-H)
- 5 - 95
- Quantity per pack
- 1
- Recommended usage
- Indoor
- Storage relative humidity (H-H)
- 10 - 100
Dimensions Weight
- Width
- 260 mm
- Weight
- 1800 g
Ethernet LAN features
- Ethernet LAN data rates
- 5000
