Overview

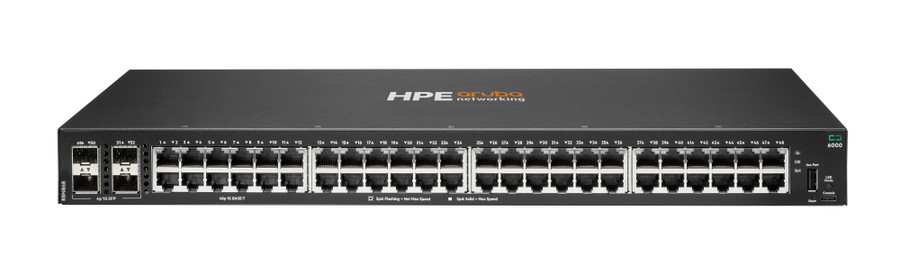

The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and HPE Aruba Networking CX Switch Operating System for a consistent, and efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small workspaces. The CX 6000 series is easy to deploy and use with flexible management choices, allowing the ideal fit for your business and network environment.
What is new supporting point:
The CX 6000 series has convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices
It has compact and fanless 8-port and 12-port models for space-constrained deployments
The CX 6000 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI
Ready for software defined networking with REST APIs.
It simplifies IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity
What is new supporting point:
The CX 6000 series has convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices
It has compact and fanless 8-port and 12-port models for space-constrained deployments
The CX 6000 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI
Ready for software defined networking with REST APIs.
It simplifies IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity
Key Features
- Managed L2/L3 Web-based management
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: USB
- MAC address table: 8192 entries Switching capacity: 104 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC
Specifications
| Dimensions Weight | |
|---|---|
| Width | 442 mm |
| Height | 43 mm |
| Depth | 246 mm |
| Weight | 2980 g |
| Battery | |
| Product colour | Black |
| Call management | |
| Web-based management | Yes |
| Camera | |
| Built-in processor | Yes |
| Processor frequency | 1016 |
| Computer system | |
| Internal memory | 4096 |
| Processor manufacturer | ARM |
| Processor model | ARM Cortex-A9 |
| Data transmission | |
| Latency (1 Gbps) | 1 |
| Switching capacity | 104 |
| Design | |
| Form factor | 1U |
| Operating relative humidity (H-H) | 5 - 95 |
| Rack mounting | Yes |
| Storage relative humidity (H-H) | 5 - 90 |
| Features | |
| AC input voltage | 200 - 240 |
| Flash memory | 16000 |
| I/O ports | 48 x 10/100/1000BASE-T ports 4 x 1 G SFP ports 1 x USB-C console port 1 x USB Type-A host port |
| Power over Ethernet (PoE) | No |
| Quality of Service (QoS) support | Yes |
| SFP+ module slots quantity | 4 |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Network | |
| 10G support | No |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabitethernet 10 100 1000 |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping |
From the manufacturer
Rich content supplied by HPE via 1WorldSyncSpecifications
Camera
- Built-in processor
- Yes
- Processor frequency
- 1016 MHz
Data transmission
- Latency (1 Gbps)
- 1
- Switching capacity
- 104
Network
- 10G support
- No
- Networking standards
- Ieee802 1ab, Ieee802 1d, Ieee802 1p, Ieee802 1q, Ieee802 1s, Ieee802 1w, Ieee802 3, Ieee802 3ab, Ieee802 3ad, Ieee802 3az, Ieee802 3x
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Basic switching RJ-45 Ethernet ports type
- Gigabitethernet 10 100 1000
Security
- DHCP features
- Dhcpclient, Dhcprelay, Dhcpserver, Dhcpsnooping
Computer system
- Internal memory
- 4096 GB
- Processor manufacturer
- ARM
- Processor model
- Armcortex A9
Features
- Height
- 43 mm
- Depth
- 246 mm
- AC input voltage
- 200 - 240
- Flash memory
- 16000
- I/O ports
- 48 x 10/100/1000BASE-T ports 4 x 1 G SFP ports 1 x USB-C console port 1 x USB Type-A host port
- Power over Ethernet (PoE)
- No
- Quality of Service (QoS) support
- Yes
- SFP+ module slots quantity
- 4
- Switch layer
- L2 L3
- Switch type
- Managed
Design
- Product colour
- Black
- Form factor
- 1U
- Operating relative humidity (H-H)
- 5 - 95
- Rack mounting
- Yes
- Storage relative humidity (H-H)
- 5 - 90
Dimensions Weight
- Width
- 442 mm
- Weight
- 2980 g
Call management
- Web-based management
- Yes
