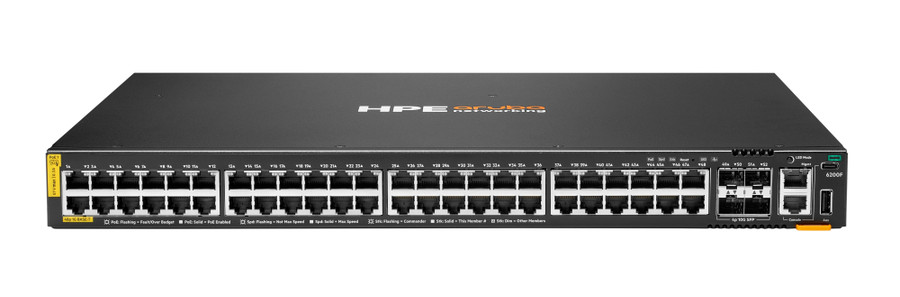

Overview
The HPE Aruba Networking CX 6200 Switch Series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable operating system (OS) with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer. Prepare your network for future demands with a powerful Gen7 ASIC that delivers an AI and Wi-Fi 7 ready, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks and up to 1440W of PoE to support Internet of Things (IoT) devices such as security cameras and wireless APs.
What is new supporting point:
Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing
Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)
HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification
What is new supporting point:
Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing
Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)
HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification
Key Features
- Managed L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45/USB Type-C
- 10G support
- MAC address table: 32768 entries Switching capacity: 176 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC Power supply included Power over Ethernet (PoE)
Specifications
| Dimensions Weight | |
|---|---|
| Width | 43 mm |
| Height | 327 mm |
| Depth | 442 mm |
| Weight | 5100 g |
| Camera | |
| Built-in processor | Yes |
| Processor frequency | 1800 |
| Computer system | |
| Internal memory | 8000 |
| Processor model | ARM Cortex-A72 |
| Data transmission | |
| Latency (1 Gbps) | 2 |
| Latency (10 Gbps) | 1 |
| Switching capacity | 176 |
| Design | |
| Form factor | 1U |
| Operating relative humidity (H-H) | 5 - 95 |
| Rack mounting | Yes |
| Storage relative humidity (H-H) | 5 - 95 |
| Features | |
| AC input voltage | 200 - 240 |
| Fan | Fixed fans |
| Flash memory | 16384 |
| I/O ports | 48 x 10/100/1000BASE-T Class 4 PoE ports, supporting up to 30W per port 4 x 100M/1/10G SFP+ ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port |
| Power over Ethernet (PoE) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| VLAN support | Yes |
| Network | |
| 10G support | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Performance | |
| Physical stacking (units) | 8 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabitethernet 10 100 1000 |
From the manufacturer
Rich content supplied by HPE via 1WorldSyncSpecifications
Performance
- Physical stacking (units)
- 8
Camera
- Built-in processor
- Yes
- Processor frequency
- 1800 MHz
Data transmission
- Latency (1 Gbps)
- 2
- Latency (10 Gbps)
- 1
- Switching capacity
- 176
Network
- 10G support
- Yes
- Networking standards
- Ieee802 3af, Ieee802 3at
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Basic switching RJ-45 Ethernet ports type
- Gigabitethernet 10 100 1000
Computer system
- Internal memory
- 8000 GB
- Processor model
- Armcortex A72
Features
- Height
- 327 mm
- Depth
- 442 mm
- AC input voltage
- 200 - 240
- Fan
- Fixed fans
- Flash memory
- 16384
- I/O ports
- 48 x 10/100/1000BASE-T Class 4 PoE ports, supporting up to 30W per port 4 x 100M/1/10G SFP+ ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port
- Power over Ethernet (PoE)
- Yes
- Quality of Service (QoS) support
- Yes
- Switch layer
- L3
- Switch type
- Managed
- VLAN support
- Yes
Design
- Form factor
- 1U
- Operating relative humidity (H-H)
- 5 - 95
- Rack mounting
- Yes
- Storage relative humidity (H-H)
- 5 - 95
Dimensions Weight
- Width
- 43 mm
- Weight
- 5100 g
