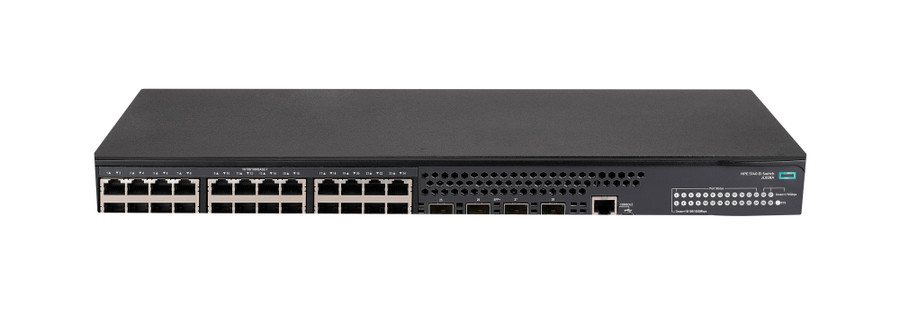

HPE Networking Comware Switch 24G 4SFP+ EI 5140. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 16384 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1p,.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Key Features
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
- 10G support
- MAC address table: 16384 entries Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC Power supply included Power over Ethernet (PoE)
Specifications
| Dimensions Weight | |
|---|---|
| Width | 43.6 mm |
| Weight | 2500 g |
| Call management | |
| Web-based management | Yes |
| Computer system | |
| Internal memory | 512 |
| Data transmission | |
| Latency (1 Gbps) | 5 |
| Latency (10 Gbps) | 3 |
| Switching capacity | 128 |
| Design | |
| Form factor | 1U |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -5 - 45 |
| Rack mounting | Yes |
| Storage relative humidity (H-H) | 5 - 95 |
| Storage temperature (T-T) | -40 - 70 |
| Features | |
| AC input voltage | 100 - 240 |
| Depth | 440 |
| Flash memory | 256 |
| Height | 160 |
| I/O ports | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: Ports 1–24 support 10BASE-T/ 100BASE-TX, 1000BASE-T (full only) SFP+ fixed 1000/10000 SFP+ ports 1 RJ-45 serial console p |
| Power over Ethernet (PoE) | Yes |
| Quality of Service (QoS) support | Yes |
| SFP+ module slots quantity | 4 |
| Switch layer | L3 |
| Switch type | Managed |
| VLAN support | Yes |
| Network | |
| 10G support | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Performance | |
| Physical stacking (units) | 9 |
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP, RIP-2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Security | |
| DHCP features | DHCP server |
