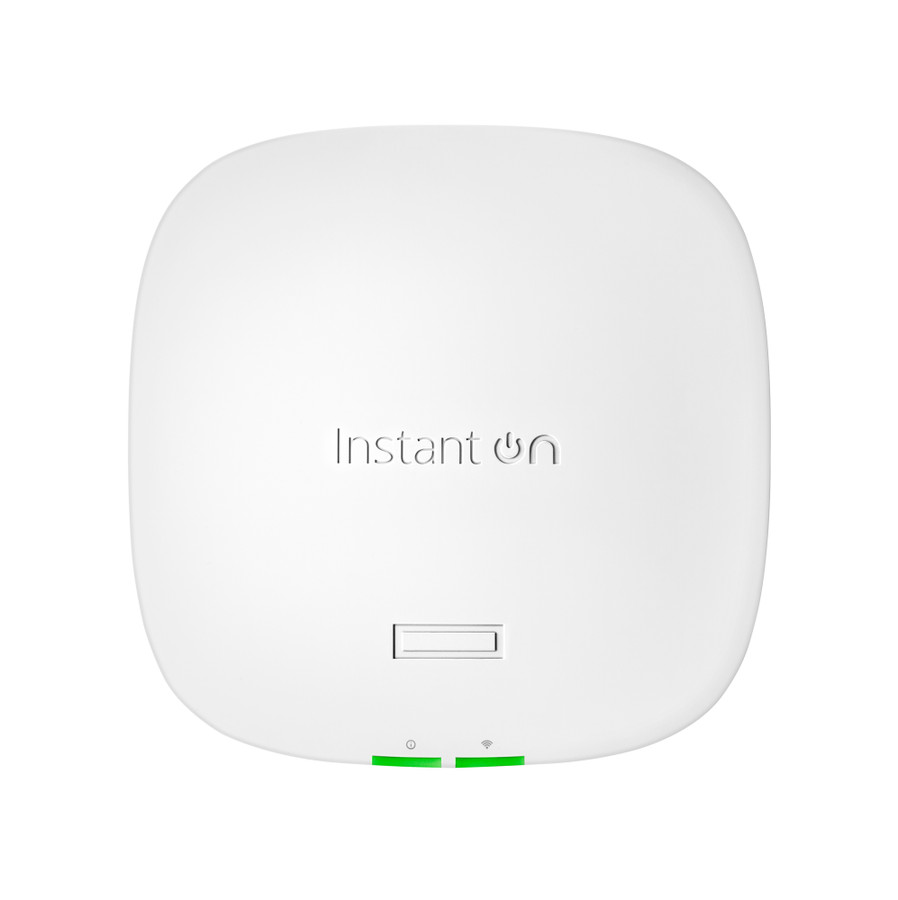

Overview
The HPE Networking Instant On Access Point AP32 is a Wi-Fi CERTIFIED 6E™ wireless access point built to bring future-ready connectivity to small and medium businesses. The AP32 supports the new 6E wireless protocol that broadcasts on the 6 GHz band, which is reserved for Wi-Fi 6E-enabled devices, and offers higher capacity and capability for the devices. This higher capacity needs a strong backhaul, so the AP32 comes with a 2.5 GbE uplink port and PoE to make connectivity and power easy. With a 2x2 antenna array supporting 2 spatial streams, the AP32 provides robust connectivity for up to 75 devices and 2.8 Gbps of wireless throughput. In the HPE Networking Instant On mobile app, choose to broadcast the 5 GHz and 6 GHz bands to achieve faster throughput speed, or switch to 2.4 GHz and 6 GHz for impressive range for modern laptops or smartphones.
What is new supporting point:
Wi-Fi CERTIFIED 6E™ support for up to 75 user devices.
2.5 Gigabit Ethernet uplink port that relieves bottlenecks brought by bandwidth-intense applications.
6 GHz band dedicated to Wi-Fi 6E-enabled devices with up to 2.4 Gbps wireless throughput.
The modern minimal design blends the HPE Networking Instant On AP32 into any environment. Enable quiet mode to disable lights for less distraction.
Keep your network protected with the HPE Networking Instant On Instant On mobile app or web portal, cloud-connected so you can manage or troubleshoot problems anywhere in the world.
What is new supporting point:
Wi-Fi CERTIFIED 6E™ support for up to 75 user devices.
2.5 Gigabit Ethernet uplink port that relieves bottlenecks brought by bandwidth-intense applications.
6 GHz band dedicated to Wi-Fi 6E-enabled devices with up to 2.4 Gbps wireless throughput.
The modern minimal design blends the HPE Networking Instant On AP32 into any environment. Enable quiet mode to disable lights for less distraction.
Keep your network protected with the HPE Networking Instant On Instant On mobile app or web portal, cloud-connected so you can manage or troubleshoot problems anywhere in the world.
Key Features
- 2.4 GHz 574 Mbit/s
- 5 GHz 1200 Mbit/s
- 6 GHz 2400 Mbit/s
- Maximum data transfer rate: 2400 Mbit/s
- IEEE 802.11ax
- OWE, WPA2, WPA3
- Power over Ethernet (PoE)
- Antennas quantity: 2 Internal
Specifications
| Dimensions Weight | |
|---|---|
| Width | 160 mm |
| Height | 160 mm |
| Depth | 39 mm |
| Weight | 520 g |
| Antenna | |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| Battery | |
| Product colour | White |
| Call management | |
| Web-based management | Yes |
| Data transmission | |
| Maximum data transfer rate | 2400 |
| Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Ethernet LAN (RJ-45) ports | 1 |
| LED indicators | Reset, Status |
| Mounting | Ceiling/Wall-mount clip |
| Ethernet LAN features | |
| Ethernet LAN data rates | 2500 Mbit/s |
| Features | |
| 5 GHz | Yes |
| 6 GHz | Yes |
| I/O ports | 1x 2.5 GbE Base-T uplink port DC power connector LED status indicators Reset/LED control button Kensington security slot |
| Maximum data transfer rate (5 GHz) | 1200 |
| Maximum data transfer rate (6 GHz) | 2400 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Number of users | 75 |
| Power over Ethernet (PoE) | Yes |
| Security algorithms | OWE, WPA2, WPA3 |
| Network | |
| Networking standards | IEEE 802.11ax |
From the manufacturer
Rich content supplied by HPE via 1WorldSyncSpecifications
Data transmission
- Maximum data transfer rate
- 2400
Network
- Networking standards
- Ieee802 11ax
Antenna
- Antenna direction type
- Omni Directional
- Antenna type
- Internal
Features
- Height
- 160 mm
- Depth
- 39 mm
- 5 GHz
- Yes
- 6 GHz
- Yes
- I/O ports
- 1x 2.5 GbE Base-T uplink port DC power connector LED status indicators Reset/LED control button Kensington security slot
- Maximum data transfer rate (5 GHz)
- 1200
- Maximum data transfer rate (6 GHz)
- 2400
- MIMO
- Yes
- MIMO type
- Multiusermimo
- Number of users
- 75
- Power over Ethernet (PoE)
- Yes
- Security algorithms
- Owe, Wpa2, Wpa3
Design
- Product colour
- White
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- Ethernet LAN (RJ-45) ports
- 1
- LED indicators
- Reset, Status
- Mounting
- Ceiling/Wall-mount clip
Dimensions Weight
- Width
- 160 mm
- Weight
- 520 g
Call management
- Web-based management
- Yes
Ethernet LAN features
- Ethernet LAN data rates
- 2500
