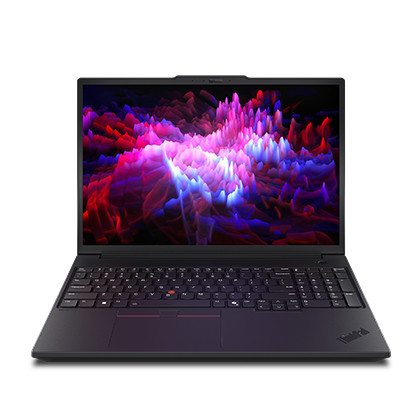

Lenovo ThinkPad T1g Gen 8. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255H. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T, Discrete graphics card model: NVIDIA GeForce RTX 5060. Operating system installed: Windows 11 Pro. Product colour: Black
Key Features
- Laptop Clamshell Black
- Intel Core Ultra 7 255H Processor cores: 16
- 40.6 cm (16") WUXGA 1920 x 1200 pixels IPS LED backlight 16:10
- 32 GB LPDDR5x-SDRAM 7467 MHz
- 1 TB SSD
- NVIDIA GeForce RTX 5060 8 GB Intel Arc 140T
- Wi-Fi 7 (802.11be) Bluetooth 5.4
- Lithium-Ion (Li-Ion) 90 Wh 140 W
- Windows 11 Pro 64-bit
Specifications
| Dimensions Weight | |
|---|---|
| Width | 354.3 mm |
| Depth | 241 mm |
| Weight | 1840 g |
| Antenna | |
| Antenna type | 2x2 |
| Audio | |
| Audio chip | Cirrus Logic CS42L43 |
| Audio system | Dolby Atmos |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 2 |
| Battery | |
| Battery capacity | 90 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Fast charging | Yes |
| Product colour | Black |
| Camera | |
| Front camera | Yes |
| Front camera resolution (numeric) | 5 |
| HD type | WUXGA |
| Operating system installed | Windows 11 Pro |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Windows Hello | Yes |
| Certificates | |
| Compliance certificates | RoHS |
| Computer system | |
| Internal memory | 32 |
| Maximum internal memory | 32 |
| Processor cache | 24 |
| Processor cores | 16 |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Processor model | 255H |
| Data transmission | |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Compatible memory cards | SD |
| Copilot key | Yes |
| Display diagonal | 16 |
| Display resolution | 1920 x 1200 |
| Ethernet LAN | No |
| Fingerprint reader | Yes |
| Form factor | Clamshell |
| Housing material | Aluminium |
| Keyboard language | UK English |
| LED backlight | Yes |
| Numeric keypad | No |
| Operating relative humidity (H-H) | 8 - 95 |
| Operating temperature (T-T) | 5 - 35 |
| Product type | Notebook |
| Storage relative humidity (H-H) | 5 - 95 |
| Storage temperature (T-T) | 5 - 43 |
| Touchscreen | No |
| Display | |
| Anti-glare screen | Yes |
| Display brightness | 500 |
| Maximum refresh rate | 60 |
| Native aspect ratio | 16:10 |
| On-board graphics card model | Intel Arc 140T |
| Panel type | IPS |
| Docking station | |
| Card reader integrated | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB Power Delivery (USB PD) | Yes |
| Features | |
| AC adapter included | Yes |
| AC adapter input voltage | 100 - 240 |
| AC adapter power | 140 |
| Depth | 241 |
| Discrete graphics card memory | 8 |
| Discrete graphics card model | NVIDIA GeForce RTX 5060 |
| Internal memory type | LPDDR5x-SDRAM |
| Keyboard backlit | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Memory form factor | LPCAMM2 |
| Mobile network connection | No |
| Motherboard chipset | Intel SoC |
| Near Field Communication (NFC) | No |
| Number of SSDs installed | 1 |
| NVMe | Yes |
| On-board graphics card | Yes |
| On-board graphics card family | Intel Arc Graphics |
| Processor boost frequency | 5.1 |
| Processor threads | 16 |
| Smart card reader | No |
| SSD capacity | 1000 |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| Storage media | SSD |
| Total storage capacity | 1000 |
| Trusted Platform Module (TPM) | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WWAN | Not installed |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics memory type | GDDR7 |
| On-board GPU manufacturer | Intel |
| Neural processor unit (NPU) | |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| GPU performance up to | 74 |
| Neural processor unit (NPU) | Intel AI Boost |
| NPU performance up to | 13 |
| Total processor performance up to | 96 |
| Performance | |
| Efficient cores | 8 |
| Performance cores | 6 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Power | |
| USB Type-C charging port | Yes |
| Processor | |
| Efficient-core base frequency | 1.5 |
| Efficient-core Max Turbo Frequency | 4.4 |
| Low Power Efficient-core Base Frequency | 700 |
| Low Power Efficient-core Max Turbo Frequency | 2.5 |
| Low Power Efficient-cores | 2 |
| Performance-core base frequency | 2 |
| Performance-core Max Turbo Frequency | 5.1 |
| Software | |
| Copilot+ PC | Yes |
| Storage | |
| Total SSDs capacity | 1000 |
