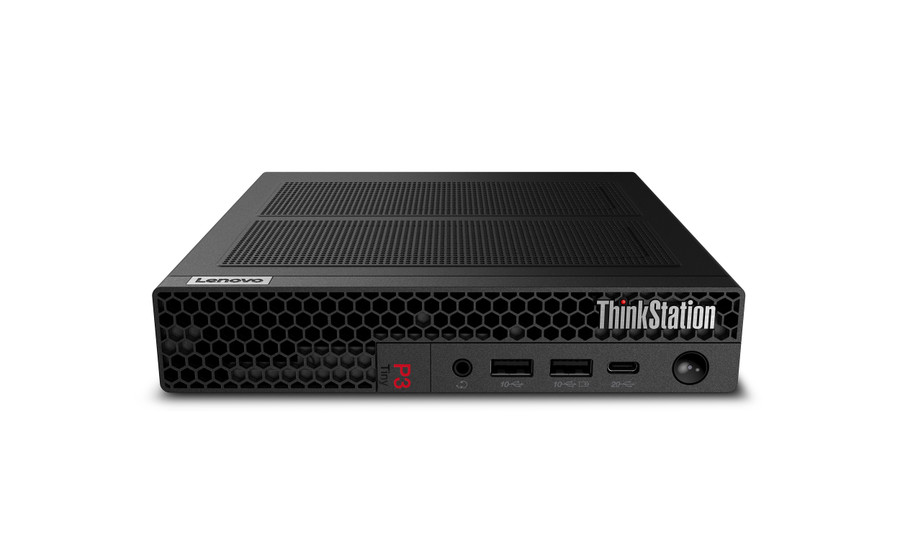

Lenovo ThinkStation P3 Tiny Gen 2. Processor family: Intel Core Ultra 7, Processor model: 265. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA RTX A400. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 330 W. Chassis type: Mini PC. Product type: Workstation. Product colour: Black
Key Features
- Workstation Black 330 W
- Intel Core Ultra 7 265 Processor cores: 20
- 32 GB DDR5-SDRAM 5600 MHz 2 x 16 GB
- 1 TB SSD
- NVIDIA RTX A400 4 GB Intel® Graphics
- Ethernet LAN 10,100,1000 Mbit/s
- Windows 11 Pro 64-bit
Specifications
| Dimensions Weight | |
|---|---|
| Width | 179 mm |
| Height | 37 mm |
| Depth | 182.9 mm |
| Weight | 1400 g |
| Build Materials Chassis Design | |
| Chassis Type | Minipc |
| Audio | |
| Audio chip | Realtek ALC233VB |
| Audio system | High Definition Audio |
| Battery | |
| Product colour | Black |
| Camera | |
| Operating system installed | Windows 11 Pro |
| Computer case | |
| Power supply | 330 |
| Computer system | |
| Internal memory | 32 |
| Maximum internal memory | 128 |
| Processor cache | 30 |
| Processor cores | 20 |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Processor model | 265 |
| Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Operating relative humidity (H-H) | 20 - 80 |
| Operating temperature (T-T) | 5 - 35 |
| Product type | Workstation |
| Storage relative humidity (H-H) | 10 - 90 |
| Storage temperature (T-T) | -40 - 60 |
| Display | |
| On-board graphics card model | Intel® Graphics |
| Docking station | |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN features | |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Features | |
| Discrete graphics card memory | 4 |
| Discrete graphics card model | NVIDIA RTX A400 |
| DisplayPorts quantity | 1 |
| Internal memory type | DDR5-SDRAM |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Memory slots | 2x SO-DIMM |
| Motherboard chipset | Intel Q870 |
| Mouse included | Yes |
| Non-ECC | Yes |
| Number of SSDs installed | 1 |
| NVMe | Yes |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® Graphics |
| Processor boost frequency | 5.3 |
| Processor cache type | Smart Cache |
| Processor threads | 20 |
| SSD capacity | 1000 |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| Storage media | SSD |
| Total storage capacity | 1000 |
| Trusted Platform Module (TPM) | Yes |
| Wi-Fi | No |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
| Keyboard | |
| Keyboard included | Yes |
| Neural processor unit (NPU) | |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, WebNN, Windows ML |
| GPU performance up to | 8 |
| Neural processor unit (NPU) | Intel AI Boost |
| NPU performance up to | 13 |
| Total processor performance up to | 33 |
| Performance | |
| Efficient cores | 12 |
| Performance cores | 8 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Processor | |
| Efficient-core base frequency | 1.8 |
| Efficient-core Max Turbo Frequency | 4.6 |
| Performance-core base frequency | 2.4 |
| Performance-core Max Turbo Frequency | 5.2 |
| Storage | |
| Total SSDs capacity | 1000 |
