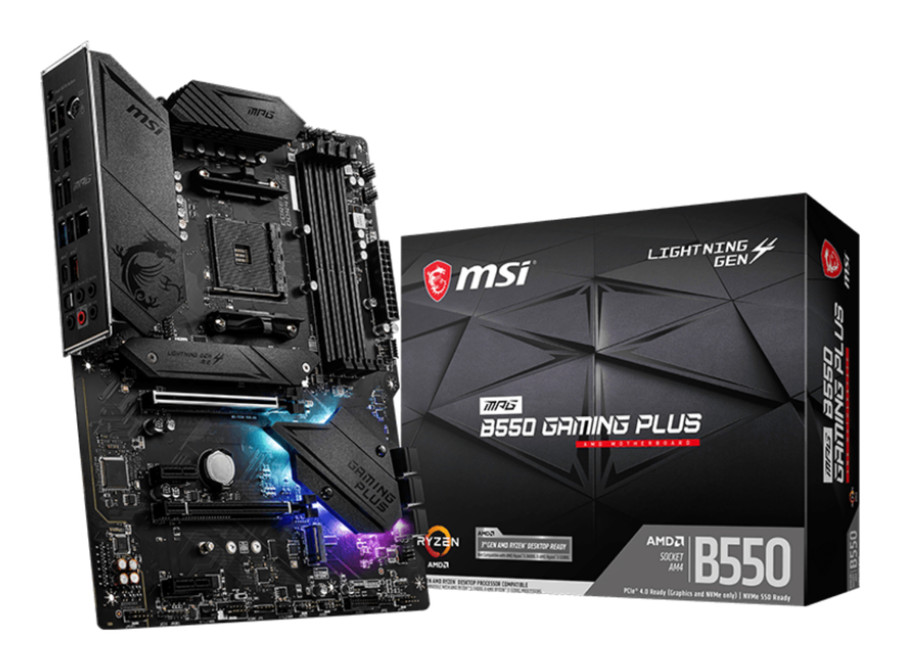

MSI MPG B550 Gaming Plus. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: 2-Way CrossFireX, Maximum graphics card memory: 16000 MB, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H
Key Features
- AMD Socket AM4 AMD Ryzen 3000 Series
- PC ATX AMD B550 Realtek ALC892 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD SATA III RAID support Number of storage drives supported: 8
- 2-Way CrossFireX 16000
- BIOS type: UEFI AMI Clear CMOS jumper
- Gigabit Ethernet
Specifications
| Dimensions Weight | |
|---|---|
| Width | 305 mm |
| Weight | 1000 g |
| Audio | |
| Audio chip | Realtek ALC892 |
| Battery | |
| Product colour | Black |
| Camera | |
| Maximum resolution | 4096 x 2160 |
| Computer case | |
| USB 2.0 ports quantity | 4 |
| Computer system | |
| Maximum internal memory | 128 |
| Processor manufacturer | AMD |
| Design | |
| Component for | PC |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of storage drives supported | 8 |
| Docking station | |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Features | |
| Cables included | SATA |
| Depth | 244 |
| Digital audio optical out | 1 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Harmonized System (HS) code | 84733020 |
| Height | 65 |
| Maximum graphics card memory | 16000 |
| Motherboard chipset | AMD B550 |
| On-board graphics card | No |
| Processor socket | Socket AM4 |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Supported memory types | DDR4-SDRAM |
| Supported storage drive types | HDD & SSD |
| Wi-Fi | No |
| Internal I/O | |
| 12V power connector | Yes |
| Memory | |
| Memory slots type | DIMM |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
