Overview

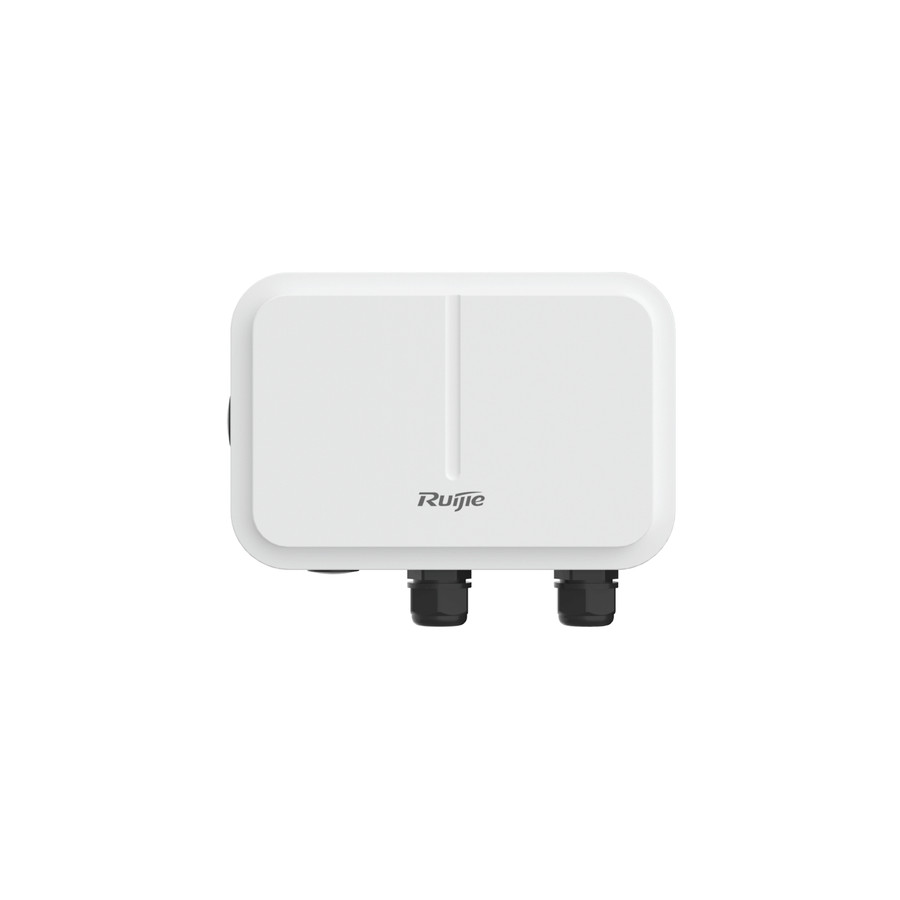

RG-AP680-L, Wi-Fi 6 Dual-Radio 2.976 Gbps Outdoor AP
Outdoor scenarios in general education, SME, energy, business, government, and healthcare sectors
Designed for Beach
Ruijie Cloud Managed Series Outdoor AP RG-AP680-L
Industrial-Grade Product Design
Ensuring Stable Running in Harsh Environments
Corrosion Protection
Comply with salt spray prevention standards, ensuring stable running in saline, warm and humid environment.
IP68 Rating
IP68 rating protection against dust and water, avoiding liquid and sand intrusion.
6 kV Lightning Protection
Built-in high-standard lightning protectors, defending against 6 kV surge and ensuring stable running in bad weather such as thunderstorms.
Wide Temperature Range
Operating in the range of –40°C to +65°C, adapting to clod weather in the northern regions.
Omnidirectional Antennas with 360° Coverage to Every Corner
Equipped with 28 dBm omnidirectional antennas with high transmit power
Extending coverage to every corner within 360° and up to 300 m in radius
Good signal coverage for STAs around the AP (including the rear side)
Applicable to outdoor environments where STAs are dispersed
Wi-Fi 6 AX3000
Achieving a combined data rate of up to 2.976 Gbps
High Concurrency
OFDMA and MU-MIMO are introduced to ensure stable access of multiple STAs
Low Latency
OFDMA is applied to transmit data to multiple STAs simultaneously. The latency is as low as 20 ms.
High Security
The next-generation wireless encryption protocol WPA3 greatly improves the
High Speed
With 1024-QAM modulation, the data transmission rate is 25% higher than 802.11ac.
Cloud, Make Your Business Easy
- Remote monitoring
- Remote Wi-Fi management
- Cloud portal authentication
- Wireless intelligent optimization
Outdoor scenarios in general education, SME, energy, business, government, and healthcare sectors
Designed for Beach
Ruijie Cloud Managed Series Outdoor AP RG-AP680-L
Industrial-Grade Product Design
Ensuring Stable Running in Harsh Environments
Corrosion Protection
Comply with salt spray prevention standards, ensuring stable running in saline, warm and humid environment.
IP68 Rating
IP68 rating protection against dust and water, avoiding liquid and sand intrusion.
6 kV Lightning Protection
Built-in high-standard lightning protectors, defending against 6 kV surge and ensuring stable running in bad weather such as thunderstorms.
Wide Temperature Range
Operating in the range of –40°C to +65°C, adapting to clod weather in the northern regions.
Omnidirectional Antennas with 360° Coverage to Every Corner
Equipped with 28 dBm omnidirectional antennas with high transmit power
Extending coverage to every corner within 360° and up to 300 m in radius
Good signal coverage for STAs around the AP (including the rear side)
Applicable to outdoor environments where STAs are dispersed
Wi-Fi 6 AX3000
Achieving a combined data rate of up to 2.976 Gbps
High Concurrency
OFDMA and MU-MIMO are introduced to ensure stable access of multiple STAs
Low Latency
OFDMA is applied to transmit data to multiple STAs simultaneously. The latency is as low as 20 ms.
High Security
The next-generation wireless encryption protocol WPA3 greatly improves the
High Speed
With 1024-QAM modulation, the data transmission rate is 25% higher than 802.11ac.
Cloud, Make Your Business Easy
- Remote monitoring
- Remote Wi-Fi management
- Cloud portal authentication
- Wireless intelligent optimization
Key Features
- 2.4 GHz 574 Mbit/s
- 5 GHz 2402 Mbit/s
- Maximum data transfer rate: 2976 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
- 64-bit WEP, 128-bit WEP, WPA-PSK, WPA-TKIP, WPA2-AES
- Power over Ethernet (PoE)
- Internal
Specifications
| Weight & dimensions | |
|---|---|
| Width | 251 mm |
| Height | 64 mm |
| Depth | 168 mm |
| Weight | 1000 g |
| Antenna | |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| Call management | |
| Web-based management | Yes |
| Data transmission | |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Maximum data transfer rate | 2976 |
| Design | |
| Ethernet LAN (RJ-45) ports | 1 |
| Operating relative humidity (H-H) | 0 - 100 |
| Product colour | White |
| Quantity per pack | 1 |
| Storage relative humidity (H-H) | 0 - 100 |
| Ethernet LAN features | |
| DHCP client | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Features | |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate (5 GHz) | 2402 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Package depth | 232 |
| Package height | 325 |
| Package weight | 3150 |
| Package width | 405 |
| Power over Ethernet (PoE) | Yes |
| Security algorithms | 128-bit WEP, 64-bit WEP, Wpa2 Aes, WPA-PSK, WPA-TKIP |
| VLAN support | Yes |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
From the manufacturer
Rich content supplied by Ruijie Networks via 1WorldSyncSpecifications
Data transmission
- Bluetooth
- Yes
- Bluetooth version
- 5 0
- Maximum data transfer rate
- 2976
Network
- Networking standards
- Ieee802 11a, Ieee802 11ac, Ieee802 11ax, Ieee802 11b, Ieee802 11g, Ieee802 11n, Ieee802 3af, Ieee802 3at
Antenna
- Antenna direction type
- Omni Directional
- Antenna type
- Internal
Features
- 5 GHz
- Yes
- 6 GHz
- No
- Maximum data transfer rate (5 GHz)
- 2402
- MIMO
- Yes
- MIMO type
- Multiusermimo
- Package depth
- 232
- Package height
- 325
- Package weight
- 3150
- Package width
- 405
- Power over Ethernet (PoE)
- Yes
- Security algorithms
- 128 Bitwep, 64 Bitwep, Wpa2 Aes, Wpa Psk, Wpa Tkip
- VLAN support
- Yes
Design
- Ethernet LAN (RJ-45) ports
- 1
- Operating relative humidity (H-H)
- 0 - 100
- Product colour
- White
- Quantity per pack
- 1
- Storage relative humidity (H-H)
- 0 - 100
Weight & dimensions
- Width
- 251 mm
- Height
- 64 mm
- Depth
- 168 mm
- Weight
- 1000 g
Call management
- Web-based management
- Yes
Ethernet LAN features
- DHCP client
- Yes
- Ethernet LAN data rates
- 10, 100, 1000
