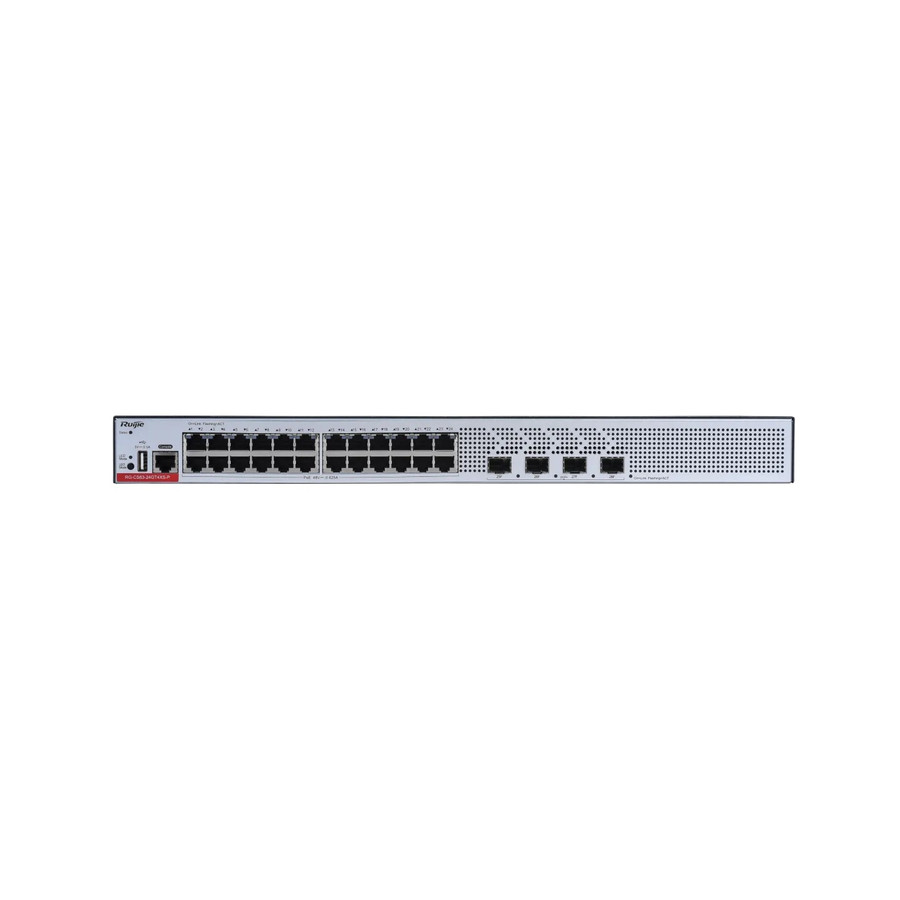

Layer 3 GE Managed Access Switch
RG-CS83-24GT4XS-P
24 x 10/100/1000BASE-T ports and four 1GE/10GE SFP+ ports for flexible networking
PoE+ supported, providing power to powered devices on security hybrid systems and wireless coverage systems
Dual-boot at the hardware level, Offering
Carrier-class Reliability
Two flash chips used to store boot software to achieve hardware-level boot redundancy,
avoiding switch boot failures due to flash chip faults
10 kV Surge Protection
Industry-leading port surge protection capability.The ports can endure 10 kV surge. The PoE power modules can endure 8 kV surges and non-PoE ones can withstand 6 kV surges, strong protection ability, adaptation to harsh environment.
RG-CS83-24GT4XS-P
24 x 10/100/1000BASE-T ports and four 1GE/10GE SFP+ ports for flexible networking
PoE+ supported, providing power to powered devices on security hybrid systems and wireless coverage systems
Dual-boot at the hardware level, Offering
Carrier-class Reliability
Two flash chips used to store boot software to achieve hardware-level boot redundancy,
avoiding switch boot failures due to flash chip faults
10 kV Surge Protection
Industry-leading port surge protection capability.The ports can endure 10 kV surge. The PoE power modules can endure 8 kV surges and non-PoE ones can withstand 6 kV surges, strong protection ability, adaptation to harsh environment.
Key Features
- Managed L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G support 1000BASE-T
- MAC address table: 16000 entries Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- 1U Stackable
- AC Power supply included Power over Ethernet (PoE)
Specifications
| Dimensions Weight | |
|---|---|
| Width | 442 mm |
| Weight | 3400 g |
| Battery | |
| Power protection features | Surgeprotection |
| Product colour | Grey |
| Camera | |
| Built-in processor | Yes |
| Processor frequency | 1000 |
| Certificates | |
| Compliance certificates | RoHS |
| Computer system | |
| Internal memory | 1000 |
| Cooling | |
| Noise level | 35 |
| Number of fans | 1 |
| Data transmission | |
| Switching capacity | 128 |
| Design | |
| Form factor | 1U |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 95 |
| Features | |
| AC input voltage | 90 - 264 |
| Depth | 220 |
| Flash memory | 512 |
| Height | 43 |
| IPv4 & IPv6 features | Ipv6sourceaddressvalidationimprovement Savi |
| IPv4 multicast entries | 1000 |
| IPv6 multicast entries | 750 |
| Manual | Yes |
| Package depth | 338 |
| Package height | 154 |
| Package weight | 4250 |
| Package width | 540 |
| Power over Ethernet (PoE) | Yes |
| Quality of Service (QoS) support | Yes |
| Security algorithms | HTTPS, SSH, Ssh 2 |
| Switch layer | L3 |
| Switch type | Managed |
| Virtual LAN features | Interface Basedvlan, IP subnet–based VLAN, MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| VLAN support | Yes |
| Network | |
| 10G support | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3ah, IEEE 802.3az |
| Performance | |
| Routing protocols | Ospfv2, Ospfv3, Rip, Ripng |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabitethernet 10 100 1000 |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, Dhcpv6server, DHCPv6 snooping |
| IP-MAC-Port binding | Yes |
