Overview

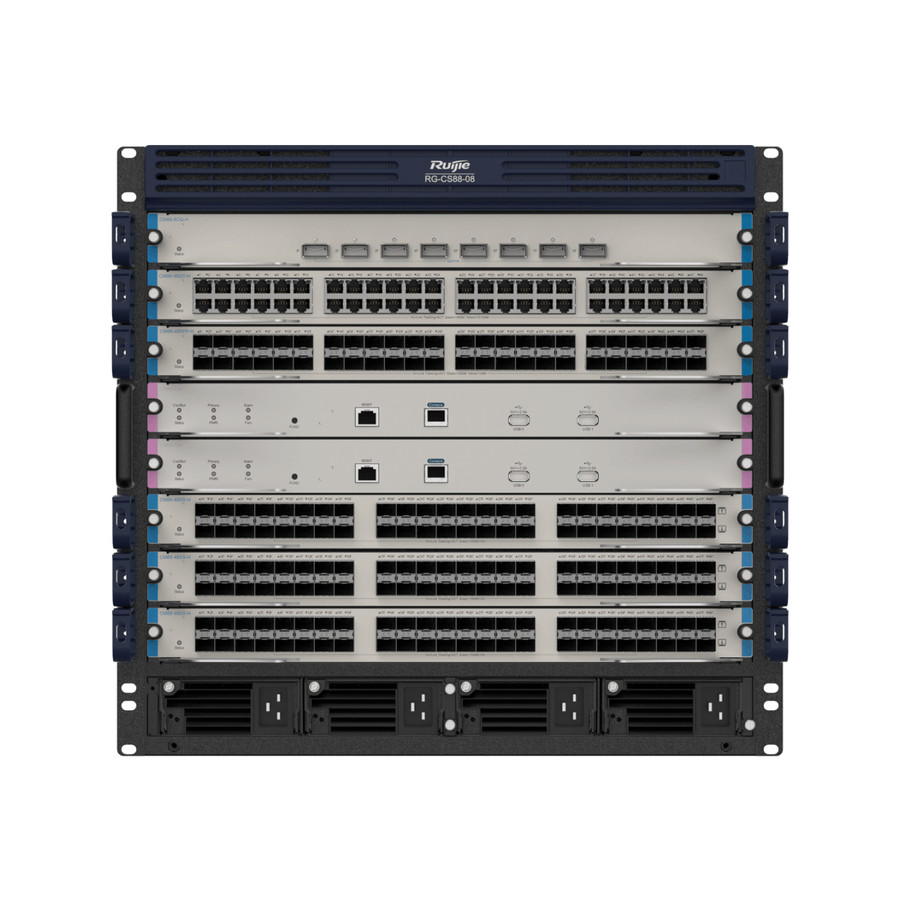

Cloud Managed Modular Core Switch RG-CS88-08
10 RU compact size, saving cabinet space,high-density 1G/10G/40G/100G line cards support up to 288 10GE ports. Only one line card is required to meet networking requirements at the small- or medium-sized network core or medium-sized network aggregation layer.
Dual-Boot Backup
Two flash chips for storing boot software achieve hardware-level boot
redundancy, avoiding switch boot failures due to a flash chip fault.
1+1 Supervisor
Module Redundancy
1+1 hot standby ensures nonstop switch services.
N+M Power Supply Redundancy
Four hot-swappable power supplies realize failover within seconds and service continuity during power replacement, ensuring link reliability.
1+1 Fan Redundancy
Two axial flow fans for factory delivery support 256-level speed regulation and precise temperature control, reducing energy consumption and noise.
10 RU compact size, saving cabinet space,high-density 1G/10G/40G/100G line cards support up to 288 10GE ports. Only one line card is required to meet networking requirements at the small- or medium-sized network core or medium-sized network aggregation layer.
Dual-Boot Backup
Two flash chips for storing boot software achieve hardware-level boot
redundancy, avoiding switch boot failures due to a flash chip fault.
1+1 Supervisor
Module Redundancy
1+1 hot standby ensures nonstop switch services.
N+M Power Supply Redundancy
Four hot-swappable power supplies realize failover within seconds and service continuity during power replacement, ensuring link reliability.
1+1 Fan Redundancy
Two axial flow fans for factory delivery support 256-level speed regulation and precise temperature control, reducing energy consumption and noise.
Key Features
- Managed L3
- Quality of Service (QoS) support
- Switching capacity: 9600 Gbit/s
- Access Control List (ACL)
- Rack mounting
- AC Power supply included
Specifications
| Dimensions Weight | |
|---|---|
| Width | 442 mm |
| Height | 441 mm |
| Depth | 465 mm |
| Weight | 35600 g |
| Camera | |
| Built-in processor | Yes |
| Processor frequency | 1500 |
| Computer system | |
| Internal memory | 4000 |
| Data transmission | |
| Switching capacity | 9600 |
| Design | |
| Operating relative humidity (H-H) | 10 - 90 |
| Rack mounting | Yes |
| Storage relative humidity (H-H) | 5 - 95 |
| Features | |
| Flash memory | 8000 |
| Quality of Service (QoS) support | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Switch layer | L3 |
| Switch type | Managed |
| Virtual LAN features | Private VLAN |
| VLAN support | Yes |
| Network | |
| Networking standards | IEEE 802.1s, IEEE 802.1w, IEEE 802.3az |
| Performance | |
| Routing protocols | BGP4+, Is Is, Mpls, OSPF, RIP, VRRP |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping |
From the manufacturer
Rich content supplied by Ruijie Networks via 1WorldSyncSpecifications
Performance
- Routing protocols
- Bgp4, Is Is, Mpls, Ospf, Rip, Vrrp
Camera
- Built-in processor
- Yes
- Processor frequency
- 1500 MHz
Data transmission
- Switching capacity
- 9600
Network
- Networking standards
- Ieee802 1s, Ieee802 1w, Ieee802 3az
Security
- DHCP features
- Dhcpclient, Dhcprelay, Dhcpserver, Dhcpsnooping
Computer system
- Internal memory
- 4000 GB
Features
- Height
- 441 mm
- Depth
- 465 mm
- Flash memory
- 8000
- Quality of Service (QoS) support
- Yes
- Security algorithms
- Snmp, Snmpv2, Snmpv3
- Switch layer
- L3
- Switch type
- Managed
- Virtual LAN features
- Privatevlan
- VLAN support
- Yes
Design
- Operating relative humidity (H-H)
- 10 - 90
- Rack mounting
- Yes
- Storage relative humidity (H-H)
- 5 - 95
Dimensions Weight
- Width
- 442 mm
- Weight
- 35600 g
