Best-in-class Wi-Fi Performance

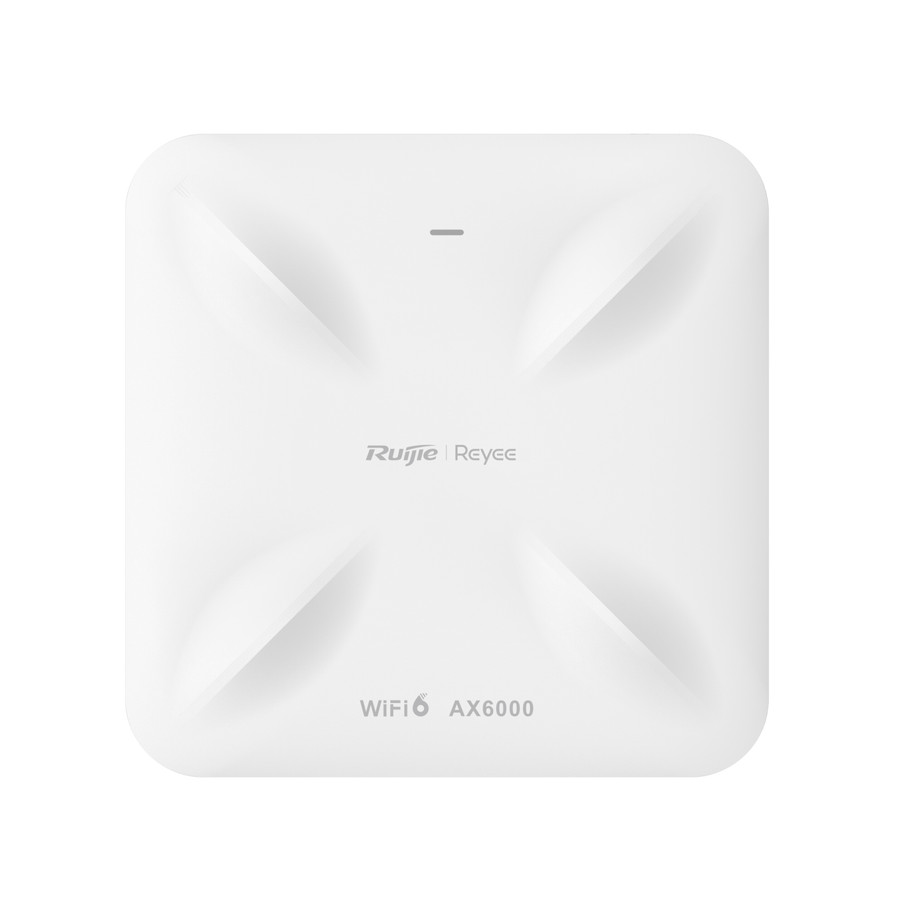

With a revolutionary combination of OFDMA and 1024QAM, the latest 802.11ax standard, the 160MHz band, and dual band 4x4 MU-MIMO, RG-RAP6260(H) wireless aggregation rate reaches 5.95Gbps.
Easily Add Extra Outdoor Wi-Fi with Reyee Mesh
Less wiring, more relaxing
Support Extra-Distance Access Point Deployment
With gigabit SFP port, the device supports up to 20km
transmission from datacenter with single mode fiber
Rock-solid in Harsh Environments
Adopts completely sealed, waterproof, dustproof, moisture proof and flame-retardant,
wind erosion protection,wide temperature range, and 4kV surge protection design.
Directional Coverage with Long Range
Built-in high gain antennas, supports full coverage.
With a revolutionary combination of OFDMA and 1024QAM, the latest 802.11ax standard, the 160MHz band, and dual band 4x4 MU-MIMO, RG-RAP6260(H) wireless aggregation rate reaches 5.95Gbps.
Easily Add Extra Outdoor Wi-Fi with Reyee Mesh
Less wiring, more relaxing
Support Extra-Distance Access Point Deployment
With gigabit SFP port, the device supports up to 20km
transmission from datacenter with single mode fiber
Rock-solid in Harsh Environments
Adopts completely sealed, waterproof, dustproof, moisture proof and flame-retardant,
wind erosion protection,wide temperature range, and 4kV surge protection design.
Directional Coverage with Long Range
Built-in high gain antennas, supports full coverage.
Key Features
- 2.4 GHz 1148 Mbit/s
- 5 GHz 4804 Mbit/s
- Maximum data transfer rate: 5950 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- SSID, WPA-PSK, WPA2-PSK
- Power over Ethernet (PoE)
- Antennas quantity: 8 Internal
Specifications
| Dimensions Weight | |
|---|---|
| Width | 300 mm |
| Height | 75 mm |
| Depth | 300 mm |
| Weight | 3500 g |
| Antenna | |
| Antenna direction type | Directional |
| Antenna type | Internal |
| Battery | |
| Product colour | White |
| Call management | |
| Web-based management | Yes |
| Data transmission | |
| Maximum data transfer rate | 5950 |
| Design | |
| Ethernet LAN (RJ-45) ports | 2 |
| LED indicators | System |
| Operating relative humidity (H-H) | 0 - 100 |
| Quantity per pack | 1 |
| Storage relative humidity (H-H) | 0 - 100 |
| Ethernet LAN features | |
| DHCP client | Yes |
| DHCP server | Yes |
| Ethernet LAN data rates | 100, 1000 Mbit/s, 2500 |
| Features | |
| 5 GHz | Yes |
| 6 GHz | No |
| Depth | 300 |
| Height | 75 |
| Maximum data transfer rate (5 GHz) | 4804 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Mounting kit | Yes |
| Number of users | 130 |
| Package depth | 395 |
| Package height | 197 |
| Package weight | 5470 |
| Package width | 395 |
| Power over Ethernet (PoE) | Yes |
| Security algorithms | Ssid, WPA2-PSK, WPA-PSK |
| VLAN support | Yes |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security | |
| Number of SSID supported | 8 |
